2000 ZX9R Suspension Setting

ZX2R, ZXR400, ZXR750, ZX6R, ZX7R, ZX9R & ZX12R & others.
Post Reply
User avatar
Mudzy
Newbie
Posts: 13
Joined: Sat Oct 11, 2014 7:51 am
Bike: ZX9R
State: New South Wales
Location: Rooty Hill NSW=Shaggers Ridge

2000 ZX9R Suspension Setting

Post by Mudzy »

motorcycle......issue.........front preload...........front rebound damping............front comp. damping ........rear preload...............rear rebound damping.........rear comp. damping

ZX-9R ('00).......4/00 ........2 lines showing........3 clicks out........................ 8 clicks out....................6 turns out from soft......2 clicks out.....................10 clicks out

ZX-9R ('00).......8/00 .......4 lines showing........4 clicks out........................ 4 clicks out....................3 turns in from stock......3 clicks out.....................10 clicks out

Just after some advice as to which would be suited to sprited riding

Cheers
Dave
User avatar
paulsj
KSRC Member
KSRC Member
Posts: 224
Joined: Thu Jun 03, 2004 3:37 pm
Bike: ZX9R
State: Victoria
Location: melbourne

Re: 2000 ZX9R Suspension Setting

Post by paulsj »

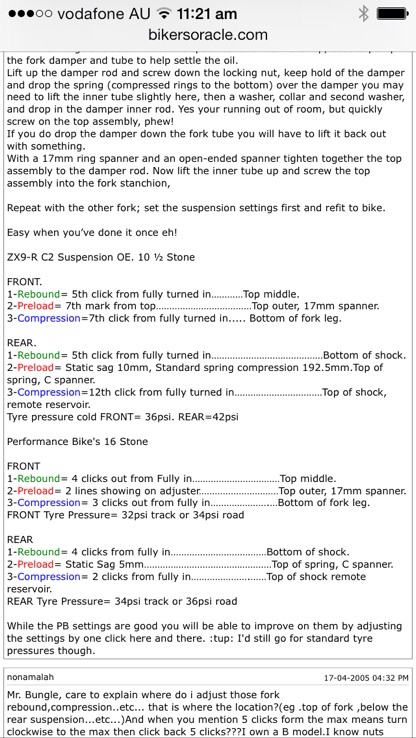

Think your top set of settings would suit spirited riding. I have a 99 C2 and played around with the following settings using the performance bike settings as a starting point but found the front springs far too soft so I put in some heavier race tech jobbys in now it feels tops but if I can put some money aside will have them revalved and big pistons fitted.
Attachments
