97 zx6r rotor removal

Post by MrWasabi »

Well i got the wreck back home today and no time was spared in pulling it apart to assess the damage.
apart from cosmetics seems like i did quite a number on the stator and its internals. so far the cover, the stator itself and the rotor seem to all be damaged.

I managed to pull everything out, even the rotor bolt, but im having a hard time removing the rotor, is there a special trick to this?

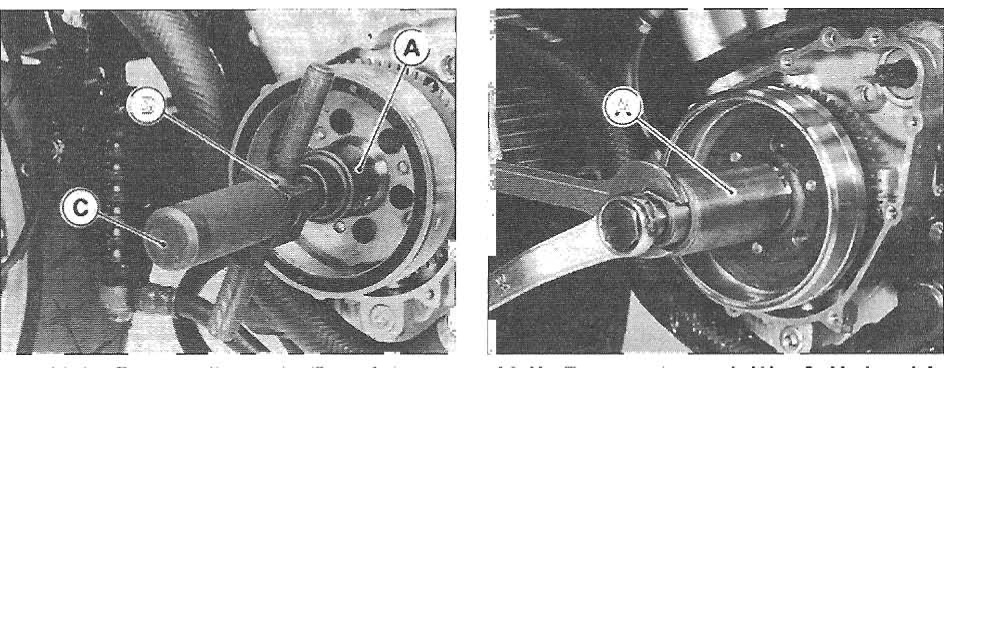

The book says i need a rotor removal tool, but im sure not everyone has one of these laying around so whats the best improvisation?
Attachments
rotor removal tool
rotor removal tool
Mistakes:
Learn from the mistakes of others. You won't live long enough to make all of them yourself.
http://www.sentechcomputers.com.au
User avatar
MrWasabi
Team Kuda
Team Kuda
Posts: 2039
Joined: Tue Feb 12, 2008 12:59 pm
Bike: ZX6R
State: New South Wales
Location: Omicron Persei 8

Re: 97 zx6r rotor removal

Post by MrWasabi »

Ok, so i have been calling around mechanics and spare parts places and apparantly they all say that i shouldnt attempt to remove it by force, as i could damage the crank.
anyway they all said i need a flywheel puller. so i guess this changes my question...

anyone have a flywheel puller i can borrow? :D

Edit: apparantly there are some types which are generic and can fit almost any rotor.
Mistakes:
Learn from the mistakes of others. You won't live long enough to make all of them yourself.
http://www.sentechcomputers.com.au
User avatar
Richo
Team Chainsaw
Team Chainsaw
Posts: 1919
Joined: Wed Apr 09, 2008 1:55 pm
Bike: ZRX
State: New South Wales
Location: Mount Colah

Re: 97 zx6r rotor removal

Post by Richo »

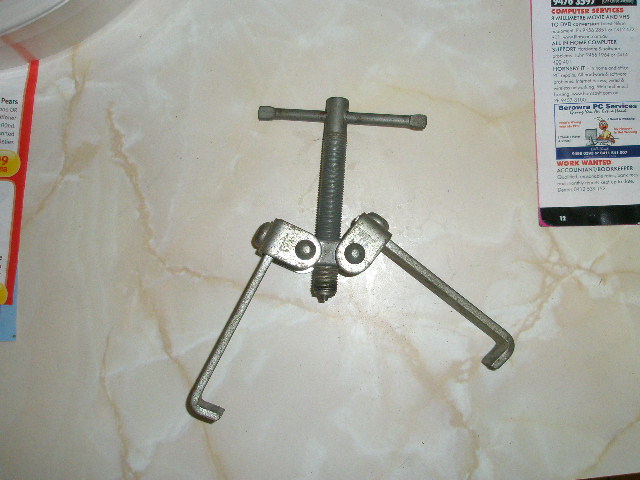

Will this work?????
Attachments
Something puller ;-/
Something puller ;-/
2004 ZRX1200R
And on the seventh day Richo ended his work which he had made. Decided resting was for soft cox, straddled the REX and headed up the old road.
And it was good
User avatar
MrWasabi
Team Kuda
Team Kuda
Posts: 2039
Joined: Tue Feb 12, 2008 12:59 pm
Bike: ZX6R
State: New South Wales
Location: Omicron Persei 8

Re: 97 zx6r rotor removal

Post by MrWasabi »

i could kiss you :D

middle pin looks a bit big, but i could put something in between to improvise :D
when and where can i pick it up? :kuda:
Mistakes:
Learn from the mistakes of others. You won't live long enough to make all of them yourself.
http://www.sentechcomputers.com.au
User avatar
Richo
Team Chainsaw
Team Chainsaw
Posts: 1919
Joined: Wed Apr 09, 2008 1:55 pm
Bike: ZRX
State: New South Wales
Location: Mount Colah

Re: 97 zx6r rotor removal

Post by Richo »

Have decided to do Dust tomoz .. so shall bring it then if yas are goin ???
