GPX250 regulator/rectifier part number

[waynemorgan]

Hi everyone,

I'm trying to find a RR for my GPZ and it looks like the GPX250 RR is the same part number - SH530-12 K7.3

Could anyone confirm this for me please? My concern is that it's only on the '87-'88 model bikes.

Thanks,
Wayne

[Ratmick]

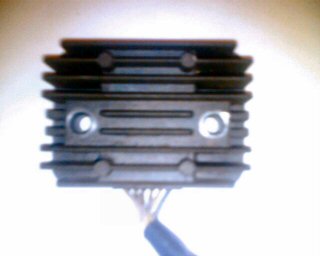

If the part looks like this one off a 1986 GPX250R:


then you're looking at this part number: 21066-1030 REGULATOR-VOLTAGE

FWIW it looks like a pretty common unit, it's on all these bikes:

EL250-B2 (Eliminator) (1988)
EL250-B3 (Eliminator) (1989)
EL250-E1 (Eliminater 250) (1991)
EL250-E2 (Eliminator 250) (1992)
EL250-E3 (Eliminator 250) (1993)
EL250-E4 (Eliminator 250) (1994)
EN450-A1 (454 LTD) (1985)
EN450-A2 (454 LTD) (1986)
EN450-A3 (454 LTD) (1987)
EN450-A4 (454 LTD) (1988)
EN450-A5 (454 LTD) (1989)
EN450-A6 (454 LTD) (1990)
EN500-A1 (Vulcan 500) (1990)
EN500-A2 (Vulcan 500) (1991)
EN500-A3 (Vulcan 500) (1992)
EN500-A4 (Vulcan 500) (1993)
EN500-A5 (Vulcan 500) (1994)
EN500-A6 (Vulcan 500) (1995)
EN500-A7 (Vulcan 500) (1996)
EN500-C1 (Vulcan 500 LTD) (1996)
EN500-C10 (Vulcan 500 LTD) (2005)
EN500-C2 (Vulcan 500 LTD) (1997)
EN500-C3 (Vulcan 500 LTD) (1998)
EN500-C4 (Vulcan 500 LTD) (1999)
EN500-C5 (Vulcan 500 LTD) (2000)
EN500-C6 (Vulcan 500 LTD) (2001)
EN500C6F (Vulcan 500 LTD) (2006)
EN500-C7 (Vulcan 500 LTD) (2002)
EN500C7F (Vulcan 500 LTD) (2007)
EN500-C8 (Vulcan 500 LTD) (2003)
EN500C8F (Vulcan 500 LTD) (2008)
EN500-C9 (Vulcan 500 LTD) (2004)
EN500C9F (Vulcan 500 LTD) (2009)
EX250-E1 (Ninja 250R) (1986)
EX250-E2 (Ninja 250R) (1987)
EX250-F10 (Ninja 250R) (1996)
EX250-F11 (Ninja 250R) (1997)
EX250-F12 (Ninja 250R) (1998)
EX250-F13 (Ninja 250R) (1999)
EX250-F14 (Ninja 250R) (2000)
EX250-F15 (Ninja 250R) (2001)
EX250-F16 (Ninja 250R) (2002)
EX250-F17 (Ninja 250R) (2003)
EX250-F18 (Ninja 250R) (2004)
EX250-F19 (Ninja 250R) (2005)
EX250-F2 (Ninja 250R) (1988)
EX250-F3 (Ninja 250R) (1989)
EX250-F4 (Ninja 250R) (1990)
EX250-F6 (Ninja 250R) (1992)
EX250F6F (Ninja 250R) (2006)
EX250-F7 (Ninja 250R) (1993)
EX250F7F (Ninja 250R) (2007)
EX250-F8 (Ninja 250R) (1994)
EX250-F9 (Ninja 250R) (1995)
EX500-A1 (EX500) (1987)
EX500-A2 (EX500) (1988)
EX500-A3 (EX500) (1989)
EX500-A4 (EX500) (1990)
EX500-A5 (EX500) (1991)
EX500-A6 (EX500) (1992)
EX500-A7 (EX500) (1993)
EX500-D1 (Ninja 500) (1994)
EX500-D10 (Ninja 500R) (2003)
EX500-D11 (Ninja 500R) (2004)
EX500-D12 (Ninja 500R) (2005)
EX500-D2 (Ninja 500) (1995)
EX500-D3 (Ninja 500) (1996)
EX500-D4 (Ninja 500R) (1997)
EX500-D5 (Ninja 500R) (1998)
EX500-D6 (Ninja 500R) (1999)
EX500D6F (Ninja 500R) (2006)
EX500-D7 (Ninja 500R) (2000)
EX500D7F (Ninja 500R) (2007)
EX500-D8 (Ninja 500R) (2001)
EX500D8F (Ninja 500R) (2008)
EX500-D9 (Ninja 500R) (2002)
EX500D9F (Ninja 500R) (2009)
KZ550-A4 (1983)
KZ550-C4 (LTD) (1983)
KZ550-F1 (Spectre) (1983)
KZ550-F2 (LTD Shaft) (1984)
KZ550-H2 (GPz) (1983)
KZ550-M1 (LTD Shaft) (1983)
KZ750-F1 (LTD Shaft) (1983)
KZ750-N1 (Spectre) (1982)
KZ750-N2 (Spectre) (1983)

Mick

[waynemorgan]

Thanks Mick, thats excellent,

Looks like we have a match!

Cheers,
Wayne
