Creation of my race bike (lots of pics)

photomike666 · Post by **photomike666** » Mon Mar 26, 2007 1:00 pm

Many of you (particularly the Vic crew) will remember my long suffering CBR600, and perhaps some of the crazy antics I got up to on it in the last couple of years. Well, after 30 months of hard yakka, 2 crashes and 65,000k were clocked up, it has finally been retired to the occasional track day.

And so the conversion begins.

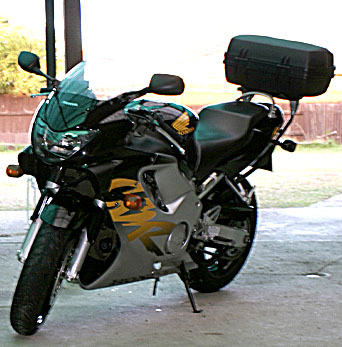

The starting point

: startingpoint.jpg (63.08 KiB) Viewed 2757 times

The track day version

: metrack1.jpg (31.49 KiB) Viewed 2757 times

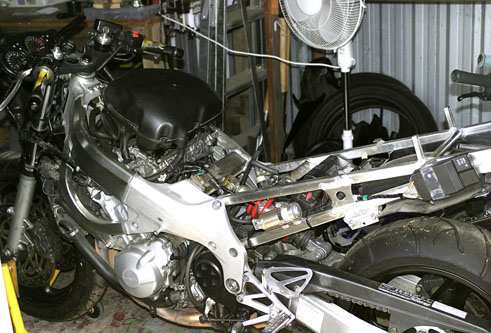

All none essentials have now been removed

: stripped.jpg (81.94 KiB) Viewed 2757 times

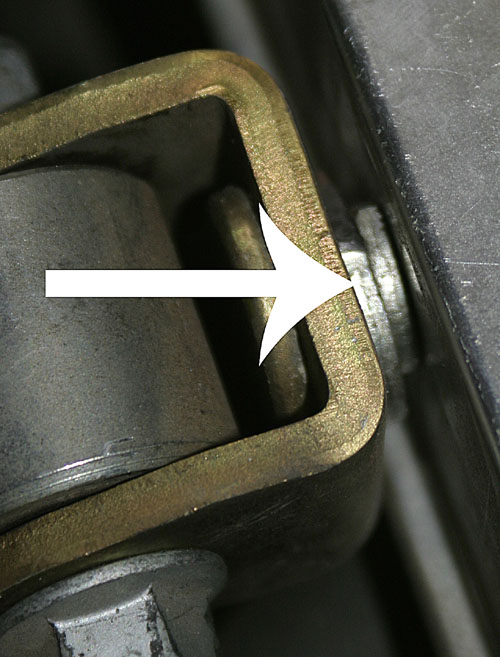

The ride height was raised using two washers at the top of the rear shock adding 3mm to its length. Being a 45 degree shock, this raised the rear quite a bit.

: rideheight.jpg (88.07 KiB) Viewed 2757 times

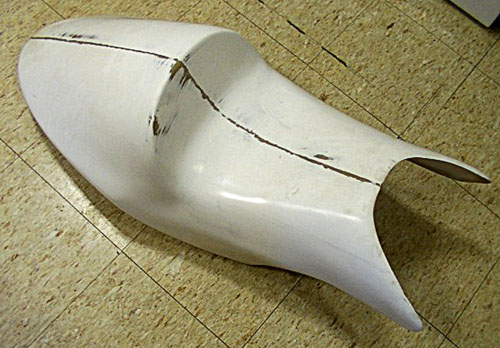

Although I have ordered a full set of race glass from Racers Edge, I acquired a solo seat unit cheap from ebay.

: soloseat.jpg (71.34 KiB) Viewed 2757 times

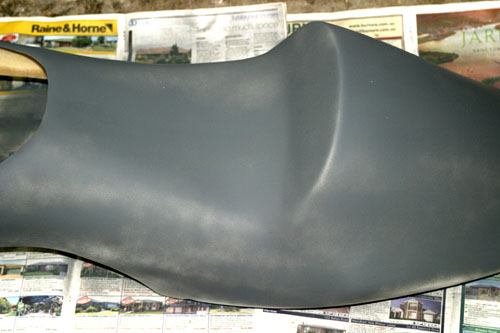

This was Etch Primered using a superb arsehole can...

: primedseat.jpg (46.78 KiB) Viewed 2756 times

The next stage is to decide on a final colour and learn to paint. I am playing with something akin to British Racing Green at the moment... more to follow.

Zamo · Post by **Zamo** » Mon Mar 26, 2007 2:01 pm

Goodluck with it mate.
Dunno bout the BRG though,a bright red or orange would look sweet.

have fun!!

Neka79 · Post by **Neka79** » Mon Mar 26, 2007 7:08 pm

mate..do it dayglo orange like the old rocket bikes...or hot pink..yea..the chicks will look twice..cos everyone loves the dude with the pink bike...

Nanna10r · Post by **Nanna10r** » Tue Mar 27, 2007 8:08 pm

Onya mike.

.

photomike666 · Post by **photomike666** » Mon May 14, 2007 8:10 pm

Had a bit of a delivery today, and spent the rest of the day in the shed.

Again the starting point, raised rear, removed pillion pegs & brackets, removed hero blobs from pegs and put new oil in the forks. Static sag set to 30mm.

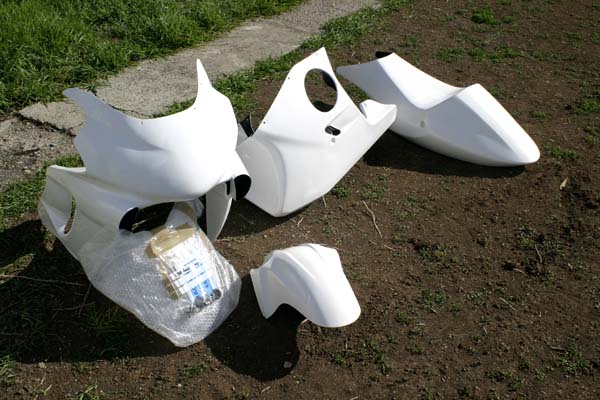

Then this arrived from Races Edge

: newfairings.jpg (68.36 KiB) Viewed 2756 times

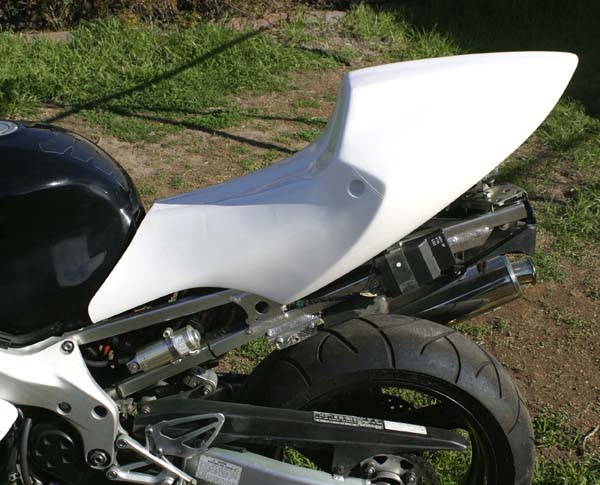

The tail unit is really small and will require a few bits to be moved around, but will look great once it's done. Luckily I have another unit (as above), and this fits the rear as it is now. It has been painted but not fully polished yet.

: smalltail.jpg (72.4 KiB) Viewed 2755 times

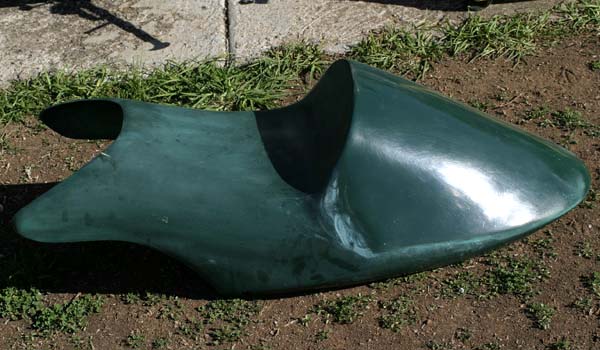

: halfpolish.jpg (64.49 KiB) Viewed 2755 times

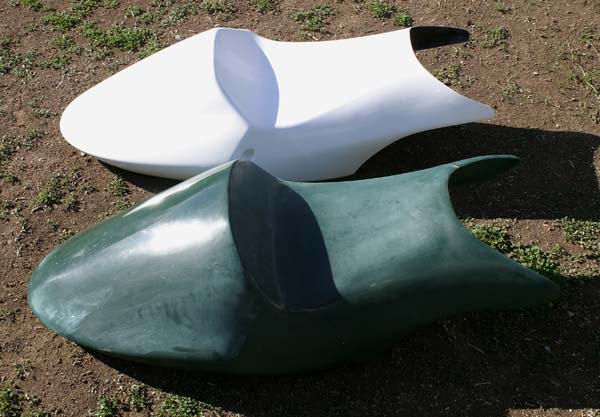

: seatunits.jpg (61.67 KiB) Viewed 2756 times

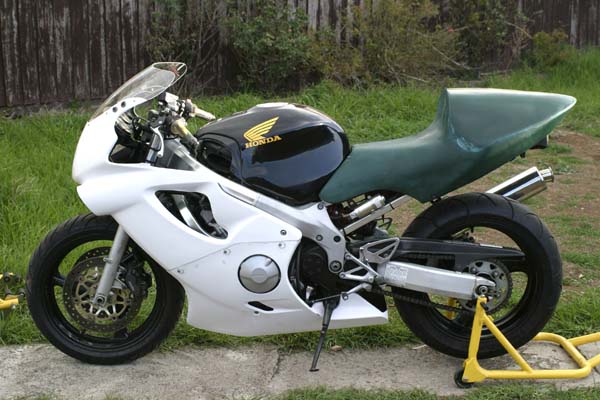

The top half of the fairings went on really easilly, and drilling the holes was far easier than I expected.

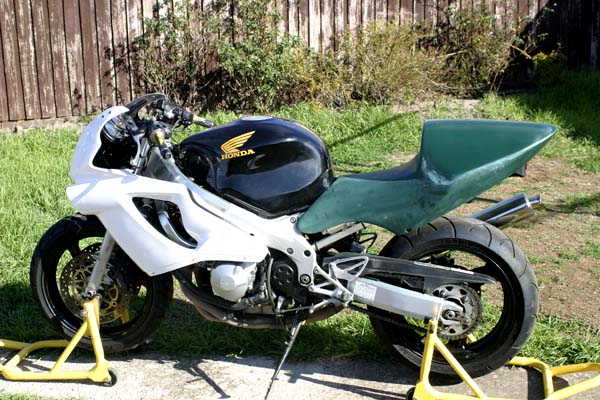

: halfdone.jpg (92.72 KiB) Viewed 2755 times

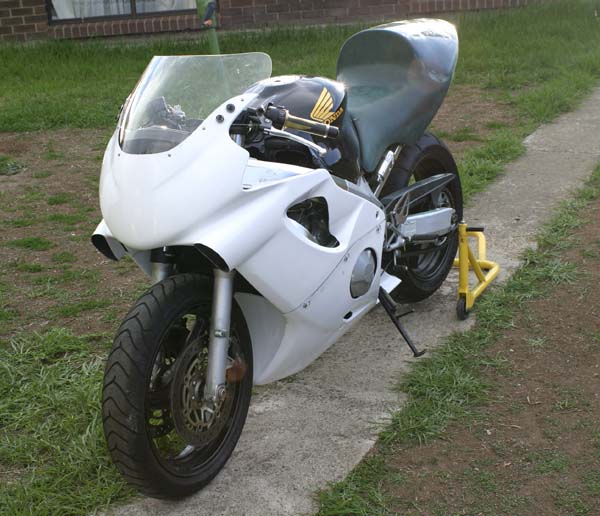

The bottom fitted easilly to the top, and stays snug with the supplied 1/4 turn duzz fastners (wire lock type).

: almostdone.jpg (68.15 KiB) Viewed 2755 times

: front.jpg (73.53 KiB) Viewed 2756 times

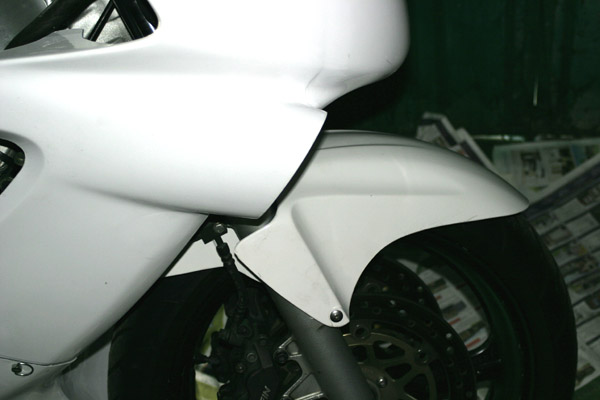

Finally the front guard slipped on, although I had to remove the front wheel to get the bolts done up.

: frontguard.jpg (52.92 KiB) Viewed 2755 times

Still have to refit the ram air ducts, but apart from that it's done. Will get the painting finished after the track day at PI on June 11th.

Post by **robracer** » Mon May 14, 2007 8:36 pm

Looking good hopefully you can get her finished for PI

photomike666 · Post by **photomike666** » Mon May 14, 2007 8:49 pm

Will polish the seat unit, don't know about painting the rest yet.

Neka79 · Post by **Neka79** » Mon May 14, 2007 11:26 pm

paint it pink... chicks dig a pink bike...

photomike666 · Post by **photomike666** » Tue May 15, 2007 9:05 am

Neka79 wrote:paint it pink... chicks dig a pink bike...

Chicks gig guys on pink bikes coz they feel 'safe' around poofs. Me, I'll stick with the plan of British racing green

Burky · Post by **Burky** » Tue May 15, 2007 10:09 am

Looks Great so far Mike.

I think go the black, that way you don't need to worry about painting the tank either!

photomike666 · Post by **photomike666** » Tue May 15, 2007 12:33 pm

Too many black bikes at the track, this will make it easier to pick myself out in the photos!

Rossi · Post by **Rossi** » Tue May 15, 2007 7:03 pm

Mick,
are they glass fibre ??
If so.........mix up a bit of 2 part resin from a glass fibre patch kit and put it on the rear of the holes you drilled........trust me mate when you drill thru the fibres it starts to powder and the more you take off & put on the fairings the bigger the holes will get.
5 minutes now and you will save a lot of grief later

photomike666 · Post by **photomike666** » Wed May 16, 2007 9:40 am

Thanks mate, I'll look into that today.

z900/zx9 · Post by **z900/zx9** » Wed May 16, 2007 2:15 pm

If ya paint the fairing black to match the tank then do the tail kwaka green that will stand out

Post by **robracer** » Wed May 16, 2007 9:34 pm

Rossi wrote:Mick,
are they glass fibre ??
If so.........mix up a bit of 2 part resin from a glass fibre patch kit and put it on the rear of the holes you drilled........trust me mate when you drill thru the fibres it starts to powder and the more you take off & put on the fairings the bigger the holes will get.
5 minutes now and you will save a lot of grief later

Great tip Rossi Im in the process of drilling some new race glass & will surely use your advice

... brilliant
