ZRX Oil filter

[ezzazrx]

My 2002 Rex is one that has to have the header pipes removed to change the oil filter, this means taking the radiator off to get to the pipes. Alot of work for services. I've bought a Murph's spin-on oil filter adapter and have decided to fit it myself,
for me this is abit of a project.
So far the seat,the tank, and the radiator are off, tomorrow the headers come off and then into the filter housing. Any tips apprieciated.

The attachment DSCF2125.JPG is no longer available

This is the Kit.

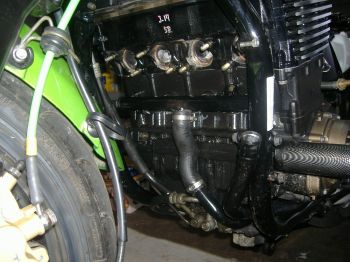

The bike so far


[Phil]

I could get the filter out with the stock exhaust, not so with the Kerker. I take that apart at the collector and use the opportunity to clean it all up. I also use a K&P stainless oil filter.

[robracer]

You can possibly get K&N filters that are shorter with the same flow rate, might be the same ones as I have used for the 05 Z750 & 05 ZX6R

[ezzazrx]

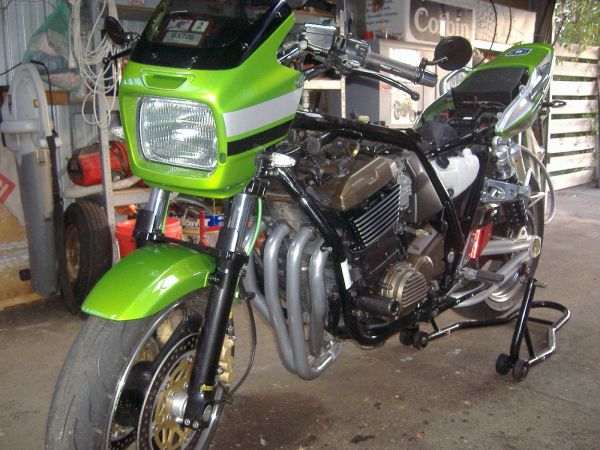

Getting the Rex up off the ground makes the whole job easier

The attachment DSCF2126.JPG is no longer available

And yes Phil this is a good opportunity to give those hard to reach places a polish

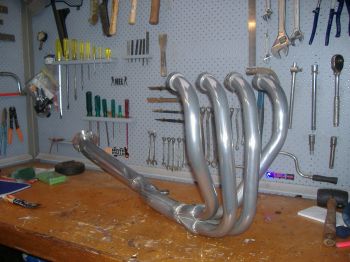

Also the pipes

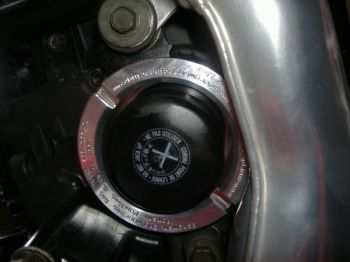

This is the adapter when fitted


Filter changes will now be a breeze.

[J-rex]

Hey Ezza, where did you get that motorcycle jack from and how much are they?...I've been looking for something like that but had no luck..

[ezzazrx]

J-Rex I got it from a company called Radum pty ltd in Tullamarine---$100 plus post---came through the mail-cheap.

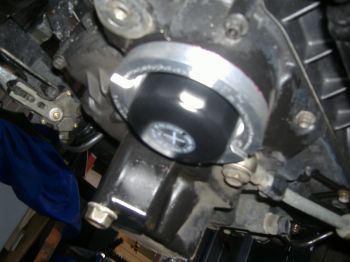

the job on the Rex is finished,this is how the filter now looks


Oil filter changes will now be a breeze.

[billwest]

I have done this on both my ZRX1200 and ZZR1200. I use standard Kawi spin-on filters.

Bill.

[kawadoug]

Never had to remove the headers but always have to pull apart the exhaust to get at the oil filter. Are these adapters available in Aussie and if so, where can I get one. I've got a ZRX1100 with a full Akrapovic system and it just makes it a bit harder to do a service when you have to pull apart the exhaust each time.
Cheers

[billwest]

Try here.....

http://www.murphskits.com/catalog/produ ... cts_id=145


Bill.

[ezzazrx]

Kawa the kit comes with full instructions however you will need a 27mm deep socket and a tension wrench,lots of tips on the ZRXOA site.
Cheers Ezza
