ZZR11 oil cooler screen mod

Post by chameleon »

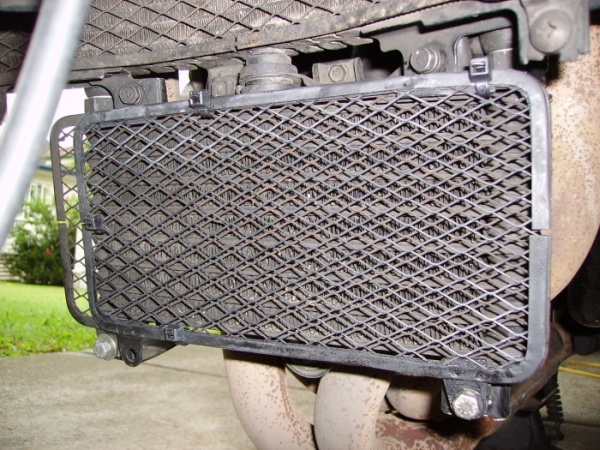

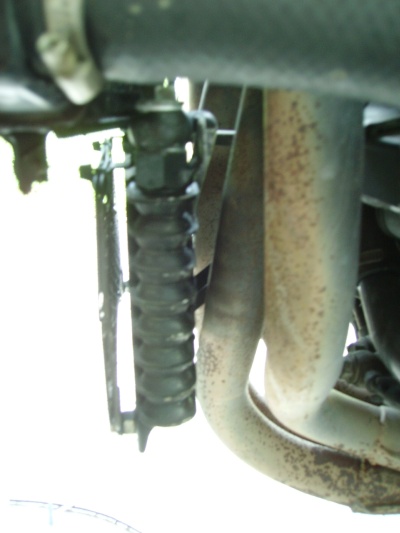

Well I had this spare screen laying about and was sick of all the rocks that managed to pass through the one fitted on the bike "holes too big I reckon" so I fitted the second one over the first one, but offset it so it closed the gaps somewhat. I also set the screens out off the face of the cooler a bit so that any rocks that passed through would fall down and out. Before this the rocks would sit against the cooler, trapped by the screen and no doubt vibrate madly against the thin alloy :x

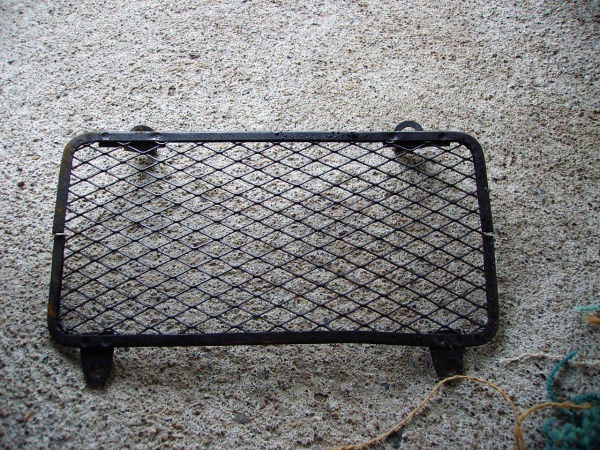

the second one is held in place by a single bolt and 4 cable ties. Unfortunately it was a different size and only one bolt hole matched, so I took the easy way out :)

the flower was in my back yard, I put it in as well, for all the pretty girls that come here wave.gif
Attachments
cooler +.jpg
cooler +.jpg (128.91 KiB) Viewed 2130 times

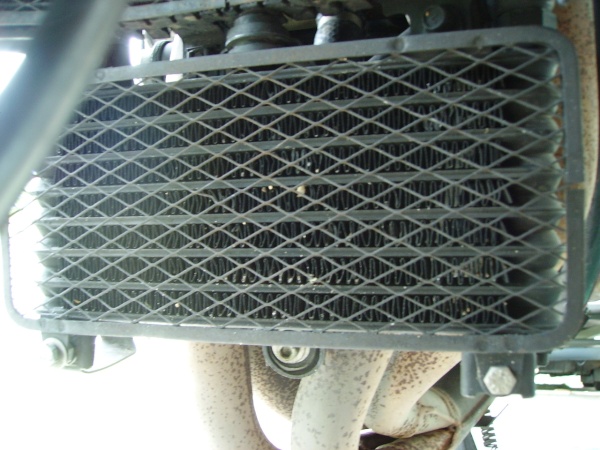

Original cooler.jpg
Original cooler.jpg (121.94 KiB) Viewed 2128 times
ZX10R King
KSRC Contributor
KSRC Contributor
Posts: 1062
Joined: Sun Oct 30, 2005 5:49 am
Location: Coorparoo, Brisbane
Contact:

Post by ZX10R King »

Here I was, thinking u had put the flower in ur oil cooler screen
SXC in black, '05 ZX10R

User avatar
mike-s
Apprentice Post Whore :-)
Apprentice Post Whore :-)
Posts: 6142
Joined: Sat Aug 07, 2004 5:43 am
Bike: Suzuki
State: New South Wales
Location: Arncliffe, Sydney
Contact:

Post by mike-s »

speakin of those guards, etc. i've lost the little guard that fits into the lower cowling below the radiator, anyone got an idea ow much im up for to get a new 'un? i havent approached a wrecker about it however and thought i'd ask for any ideas..
If it hurts, you aren't doing it right.
User avatar
Nanna10r
Team Ninja
Posts: 4291
Joined: Wed Jul 14, 2004 10:42 pm
Bike: ZX10R
State: Queensland
Location: Brisbane Australia

Post by Nanna10r »

Mike send me a cardboard template & i'll see if i can make you one.

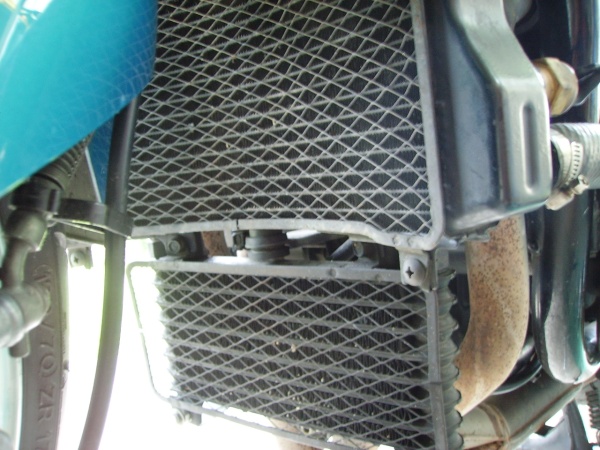

Good thinking Frank here's the Radector and Oil Radector on Yappa's 6r.
Just made up the black stainless mesh to fit to the original guards.

Excuse the pic qualirt it doesn't shrink well.
"Nan & Pop Racing"
Poppy Hops on .... CBR150 (Superlite) CBR954 "Blade"
Nanna Naps on .... MoriWAKI NSR85 (Motolite) ZX10R "Crim"
We may ride like Old Can'ts, But Phuk we look DOOG !!!!!!
chameleon
KSRC Regular
KSRC Regular
Posts: 763
Joined: Sat Nov 26, 2005 8:38 am
Location: Briso

Post by chameleon »

mike-s wrote:speakin of those guards, etc. i've lost the little guard that fits into the lower cowling below the radiator, anyone got an idea ow much im up for to get a new 'un? i havent approached a wrecker about it however and thought i'd ask for any ideas..
call kawasaki and price a new one, you might get a surprize :) Some things are shitfully expensive but others are reasonably priced. When i went looking for stuff they wanted $650 for a new oil cooler but only $80 for a set of throttle cables. I told them to jam the cooler but I bought the cables.

If that doesn't pan, call Brett.
User avatar
mike-s
Apprentice Post Whore :-)
Apprentice Post Whore :-)
Posts: 6142
Joined: Sat Aug 07, 2004 5:43 am
Bike: Suzuki
State: New South Wales
Location: Arncliffe, Sydney
Contact:

Post by mike-s »

$56 from kawasaki, just got to wait the 2-3 weeks for it to come from japan, lucky me!!

Thanks though Brett, i went OEM simply 'cause the mounting bracket would be a bit of a p.i.t.a. to replicate.
