Re: Tie-downs - Wasteland Style !!

Post by Gosling1 »

All good Cossie - these babies have lasted well. I was a bit concerned about the longevity of the threads, seeing as I scabbed out and used galvinised turnbuckles and not s/steel......but the threads have not chewed out at all.

I have not needed an R-clip, as the tension from the t/buckles and the front C-channel is enough to hold the bike upright and tight.

MickLC from this forum had his mate knock up a set, using threaded booker rod for the through-axle section, and he also turned up some nice big nylon 'collars' that sit either side of the hub - these act almost the same as an R-clip, and the D-shackle on either side sits nicely inside the channel of the collar. They are a bit tidier than mine - when Mick pops along and sees this thread back up, I am sure he will bung up a photo of his set-up - he uses it for his ZX10R and his mates ZX14.

8)
".....shut the gate on this one Maxie......it's the ducks guts !!............."
User avatar
MickLC
Team Crim
Posts: 5429
Joined: Wed Apr 21, 2004 1:04 pm
Bike: Z1000
State: ACT

Re: Tie-downs - Wasteland Style !!

Post by MickLC »

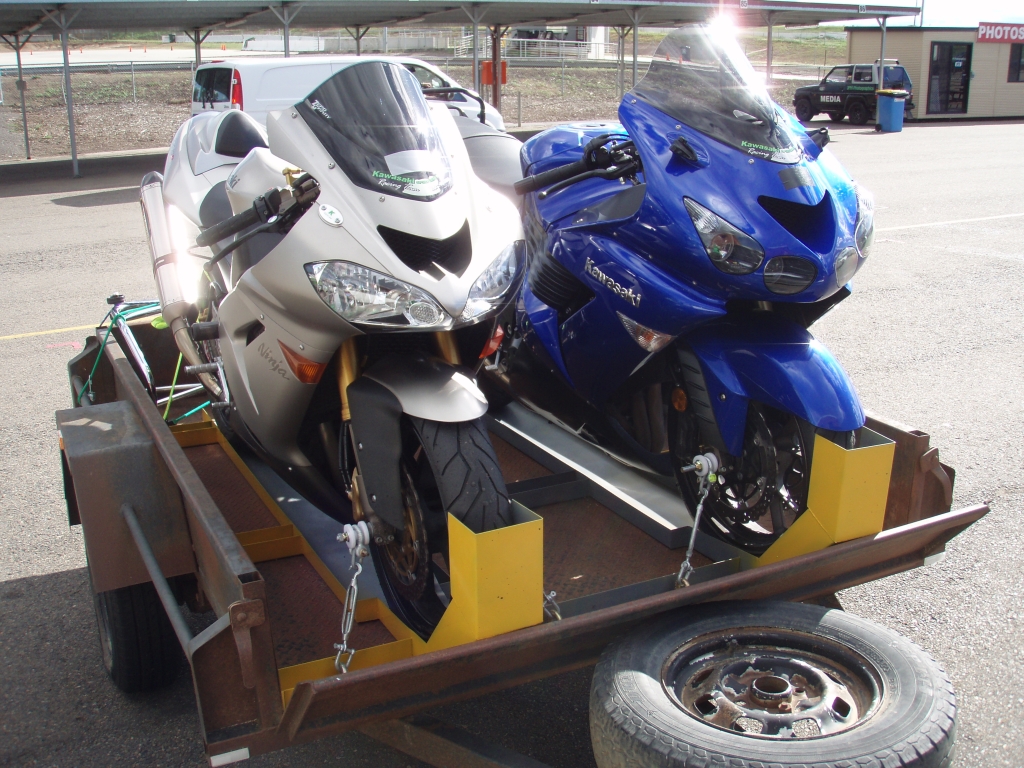

Yep, here's a pick of our setup. I can take a closeup of the nylon bushes if you want but it'll have to wait until I dig them out again.
Attachments
'13 Z1000, '76 Z650+,'91 KLR250, '95 ZX6R Racebike
User avatar
macca
KSRC Member
KSRC Member
Posts: 259
Joined: Tue Feb 17, 2009 8:54 am
Bike: ZX9R
State: ACT

Re: Tie-downs - Wasteland Style !!

Post by macca »

Dont know if this helps but we borrowed Mick's magic tie down system at christmas for my ZZR and have a couple of pics (I loved this thing - the bike didnt move, and we did around 2000kms!) :kuda:

Each side nylon bits comes in two pieces, one is a flat disc with hole through the middle, and the other is almost like a champagne cork (it has a step where the shackle fits).
tie down thingy 1.jpg
tie down thingy 1.jpg (197.97 KiB) Viewed 1145 times
tie down thingy.jpg
tie down thingy.jpg (186.57 KiB) Viewed 1145 times
fully loaded.jpg
fully loaded.jpg (195.64 KiB) Viewed 1141 times
Cossie
Newbie
Posts: 18
Joined: Sat Feb 16, 2008 9:08 pm
Bike: ZX10R
State: Victoria

Re: Tie-downs - Wasteland Style !!

Post by Cossie »

Thanks Guys!

Gives me a few ideas to work with. Good to hear they are still going strong.

Gotta be better than the crossover handle bar straps which seem to be destroying my handgrips.

Stu
User avatar
Gosling1
Team Donut
Team Donut
Posts: 13823
Joined: Mon Jun 20, 2005 9:30 pm
Bike: Z900
State: ACT
Location: Anarchy Road

Re: Tie-downs - Wasteland Style !!

Post by Gosling1 »

Cossie wrote:....Gotta be better than the crossover handle bar straps which seem to be destroying my handgrips.....
Yep - way better than those crossover straps. Not only will they destroy your grips, I have seen clip-ons actually bent under the pressure exerted from these straps. They are also shithouse for fork seals, like any sort of tie-down from the bars or even the bottom triple clamp. (for longer trips anyway. Short trips around the burbs - no worries.)

If anyone has an older bike with a solid front axle, there is a better way of tying these bikes down as well, cheap and cheerful...

Just wrap the longer end of a normal tie-down around the upper fork-leg, right on top of the lower fork leg, 2 or 3 times. You can wrap a bit of rag around here if you like - and then just hook the strap through the hook a short distance away from the fork leg. Other end of tie-down goes down to a tie-down point.....and tighten it up . Do this on the other side. Bingo - the bike is attached nice and tight, and rides on its own suspension, so the fork seals are not damaged. I used to trailer the Black Pearl to the track like this all the time. It works really well, and you don't need any costly bits apart from your standard tie-downs. This method works best if no dust-covers are present on the lower fork legs.

8)
".....shut the gate on this one Maxie......it's the ducks guts !!............."
User avatar
MickLC
Team Crim
Posts: 5429
Joined: Wed Apr 21, 2004 1:04 pm
Bike: Z1000
State: ACT

Re: Tie-downs - Wasteland Style !!

Post by MickLC »

iamwithstupid.gif works well on the LC
'13 Z1000, '76 Z650+,'91 KLR250, '95 ZX6R Racebike
jonoZRX

Re: Tie-downs - Wasteland Style !!

Post by jonoZRX »

Gosling1 wrote:I have seen clip-ons actually bent under the pressure exerted from these straps
Yeah, I bent a clipon on my gixxer with those straps :x
User avatar
Gosling1
Team Donut
Team Donut
Posts: 13823
Joined: Mon Jun 20, 2005 9:30 pm
Bike: Z900
State: ACT
Location: Anarchy Road

Re: Tie-downs - Wasteland Style !!

Post by Gosling1 »

the actual design of those bar-end straps is entirely shithouse. It places *all* the stresses at the very end of the handlebars/clip-ons while travelling. Anyone who understands basic physics, would see that this style of tie-down is the worst possible.

8)
".....shut the gate on this one Maxie......it's the ducks guts !!............."
Mikey84

Re: Tie-downs - Wasteland Style !!

Post by Mikey84 »

good on ya mate, very inventive :kuda:
User avatar
seiko1
Apprentice Post Whore :-)
Apprentice Post Whore :-)
Posts: 7643
Joined: Wed Jan 14, 2009 8:36 pm
Bike: ZX14R
State: Victoria
Location: Geelong

Re: Tie-downs - Wasteland Style !!

Post by seiko1 »

Looks great and very functional but there appears to be a reflection in the mudguard....
Looks like shrek took the pic?? :? :lol:


I'm thinking of mounting the camera's using the same hollow axle ;)
