Shorted stator. Other damage?

Post by Aussie Ninja »

Hey all, I have a shorted stator and was wondering if there is anything I should check out before slapping in a new one and firing the bike up?
Real bravery is being afraid but doing it anyway.
1998 ZX6R R.I.P.
2004 ZX10R killed by Roo.
2011 ZX10R
oldmanmike
Warming up
Warming up
Posts: 88
Joined: Wed Jan 23, 2008 3:08 pm
Bike: ZX10R
State: Victoria

Re: Shorted stator. Other damage?

Post by oldmanmike »

There was a recall of 10&6r's in recent times for this issue....is your bike one of those affected ?
https://www.recalls.gov.au/content/inde ... Id/1011038
User avatar
photomike666
Apprentice Post Whore :-)
Apprentice Post Whore :-)
Posts: 5956
Joined: Sat Jan 15, 2005 12:01 am
Bike: ZX10R
State: Victoria
Location: Melbourne
Contact:

Re: Shorted stator. Other damage?

Post by photomike666 »

I'd def be looking at the rectifier as well;

I went with a Polaris SH775 series recfitier - apparently they reduce the load on the stator and keep it significantly cooler.
Got it from http://www.roadstercycle.com/
--------------------------------------------------------------------------------------------------------------
07 ZX10R since new, tracky TBA, KX450F, 87 CR250 restoration, GT MTB - I've got serious thrill issues, dude
User avatar
Aussie Ninja
KSRC Regular
KSRC Regular
Posts: 833
Joined: Mon Nov 15, 2004 8:00 am
Bike: ZX10R
State: New South Wales
Location: Eastern Creek

Re: Shorted stator. Other damage?

Post by Aussie Ninja »

On the recall front, the bike was made in December 2010 so I'll have to check that out.

Keeping the stator cooler will definitely help avoid a repeat of this, so will look into it.

The good news I was able to get a stator yesterday. I've just fired her up and the regulator survived and is giving me a stable 14.5v :) I wasn't looking forward to a 2hr train / bus trip to work on Monday.
Real bravery is being afraid but doing it anyway.
1998 ZX6R R.I.P.
2004 ZX10R killed by Roo.
2011 ZX10R
User avatar
2010zx6r
KSRC Member
KSRC Member
Posts: 164
Joined: Sat Dec 25, 2010 10:25 am
Bike: ZX6R
State: Victoria
Location: Melbourne

Re: Shorted stator. Other damage?

Post by 2010zx6r »

Hi guys

I am having issues with my charging system. Battery voltage 11.8V when motor not running and it doesn't change when bike runs.
I had the reg,rect recall done some time ago. I replaced battery few weeks ago.

How to test stator before removing?

Thanks
2010 ZX-6R
Melbourne
User avatar
2010zx6r
KSRC Member
KSRC Member
Posts: 164
Joined: Sat Dec 25, 2010 10:25 am
Bike: ZX6R
State: Victoria
Location: Melbourne

Re: Shorted stator. Other damage?

Post by 2010zx6r »

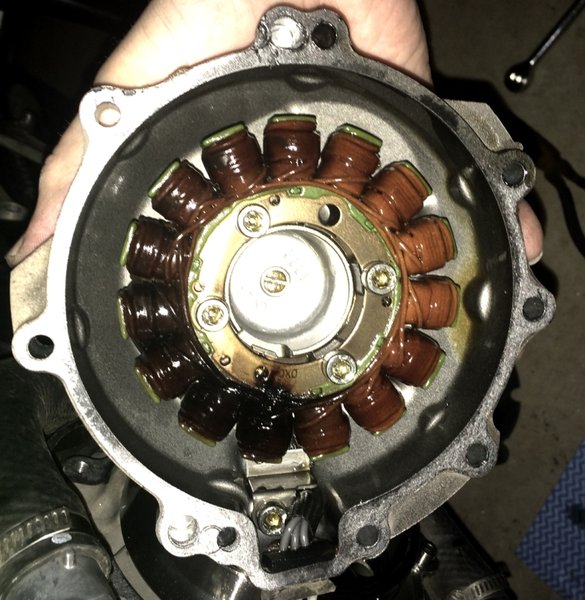

Heres my progress so far.

Stator is faulty and was shorted to ground.

peter stevens wants over $300 for one of these. [CRYING FACE]
2010 ZX-6R
Melbourne
User avatar
2010zx6r
KSRC Member
KSRC Member
Posts: 164
Joined: Sat Dec 25, 2010 10:25 am
Bike: ZX6R
State: Victoria
Location: Melbourne

Re: Shorted stator. Other damage?

Post by 2010zx6r »

2010 ZX-6R
Melbourne
bonester
KSRC Contributor
KSRC Contributor
Posts: 2075
Joined: Sun Apr 17, 2005 1:00 pm
Location: Toowoomba/Ipswich Queensland

Re: Shorted stator. Other damage?

Post by bonester »

Musta gone to Suzuki for those stators
2 X ZRX1200R 4 X ER6N, GT550, 1988 ZX-10, 4 X GPZ250R, 4 X GPZ900R and GPZ750R :) Yeah I like Kawasakis.
User avatar
Blurr
Apprentice Post Whore :-)
Apprentice Post Whore :-)
Posts: 7246
Joined: Wed Apr 02, 2008 10:31 pm
Bike: ZX10R
State: New South Wales
Location: Stockton

Re: Shorted stator. Other damage?

Post by Blurr »

Give these guys a call. Much better than what you buy off the shelf. They repair and strengthen your old one above oem spec

http://green-point-central-coast.cylex. ... 67480.html
Chariot of Fury 50cc 2stroke Race bike
Team Gumby in red
SAM & SRT Survived
User avatar
photomike666
Apprentice Post Whore :-)
Apprentice Post Whore :-)
Posts: 5956
Joined: Sat Jan 15, 2005 12:01 am
Bike: ZX10R
State: Victoria
Location: Melbourne
Contact:

Re: Shorted stator. Other damage?

Post by photomike666 »

Or you could try Small coil rewinds in Geelong

http://www.smallcoilrewinds.com.au/
--------------------------------------------------------------------------------------------------------------
07 ZX10R since new, tracky TBA, KX450F, 87 CR250 restoration, GT MTB - I've got serious thrill issues, dude
User avatar
2010zx6r
KSRC Member
KSRC Member
Posts: 164
Joined: Sat Dec 25, 2010 10:25 am
Bike: ZX6R
State: Victoria
Location: Melbourne

Re: Shorted stator. Other damage?

Post by 2010zx6r »

Thanks guys.
Aftet checking R/R it looks like i need to get one of these also. And that was replaced for recall. So really has done more than 9k kms. Suxxxx
