99 zx9r - Does this look right?

98ninja · Post by **98ninja** » Fri Aug 22, 2014 12:04 pm

So I started stripping the bike down in May 2012. Long story short, it ended up at a mates place and I got it back in bits a few weeks ago.

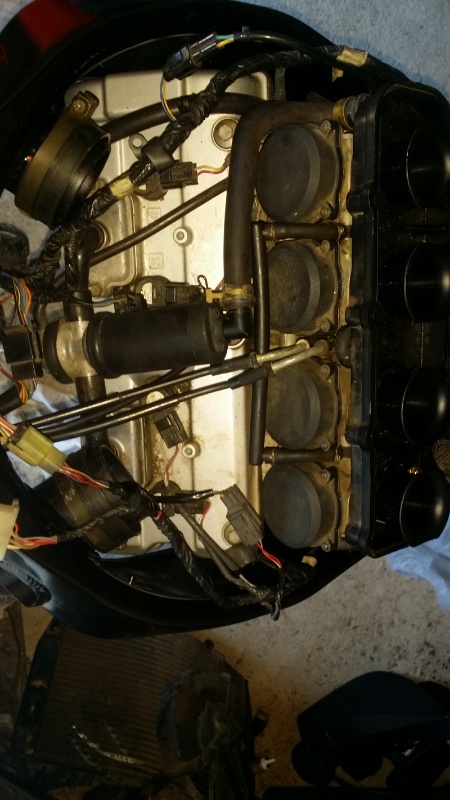

I have a Haynes manual but it doesn't seem to help, so is everything in the picture in its correct place?

QQQ · Post by **QQQ** » Fri Aug 22, 2014 1:10 pm

Nothing is standing out as completely out of place. As long as the airbox goes on without fouling I'd say ur good to go.

z3149441 · Post by **z3149441** » Sun Aug 24, 2014 3:48 pm

Looks ok from here, with the exception of the ram air tubes a little to far over the motor. I can PM you some pictures out of the Kawasaki manual if you think that may help?

Post by **MadKaw** » Sun Aug 24, 2014 5:53 pm

Get rid of the KLEEN stuff.

paulsj · Post by **paulsj** » Mon Aug 25, 2014 6:32 am

Does getting rid of the Kleen stuff do much? Been thinking about that for my one? You mean buying the blanking plates for top of the rocker covers and removing the plumbing??

Post by **MadKaw** » Mon Aug 25, 2014 7:37 am

Doesn't add any hp but reduces the backfire and popping on decel and makes it easier to tune air fuel ratios.
You don't need block off plates, just put a connector or a hose between the outlets in the plates in there and block the hole in the air box..

98ninja · Post by **98ninja** » Mon Aug 25, 2014 10:32 am

z3149441 wrote:Looks ok from here, with the exception of the ram air tubes a little to far over the motor. I can PM you some pictures out of the Kawasaki manual if you think that may help?

That'd be great thank you. I think I've got the tubes in backwards.
I'm off to bunnings to get some 16mm copper tubing to connect the kleen tunes together.

98ninja · Post by **98ninja** » Mon Aug 25, 2014 12:28 pm

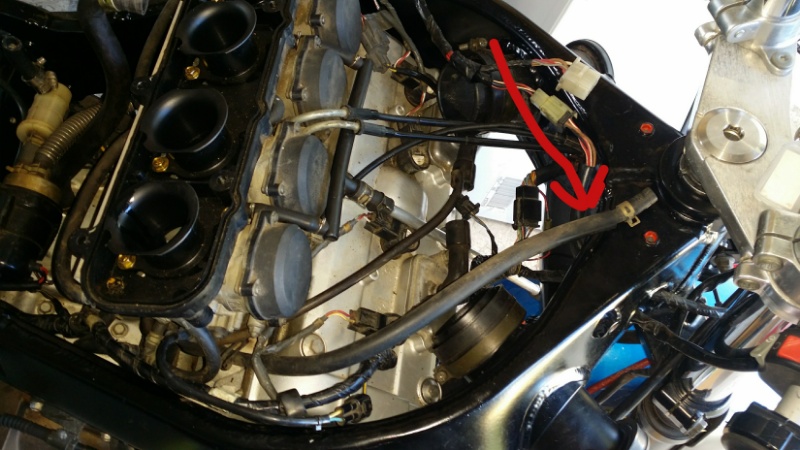

Also any idea where this house plugs into?
It connects at the back of the carburetors right I'm the middle

shadowzx9 · Post by **shadowzx9** » Tue Aug 26, 2014 8:52 pm

Back of the carbs?

might want to have a look, looks like the line from the Radiator to the back of the barrels

Post by **MadKaw** » Tue Aug 26, 2014 9:26 pm

Isn't that the one that goes into air intakes in the front fairing.?
If so it pressurizes the float bowl

QQQ · Post by **QQQ** » Wed Aug 27, 2014 9:59 am

Looks like the line to the radiator.

z3149441 · Post by **z3149441** » Thu Sep 11, 2014 6:58 pm

goes to the radiator. Think that its the one that connects just below the radiator cap.

Strika · Post by **Strika** » Wed Sep 17, 2014 6:20 pm

Carb heater hoses I think from my drug fucked memory.......

98ninja · Post by **98ninja** » Tue Sep 23, 2014 1:00 pm

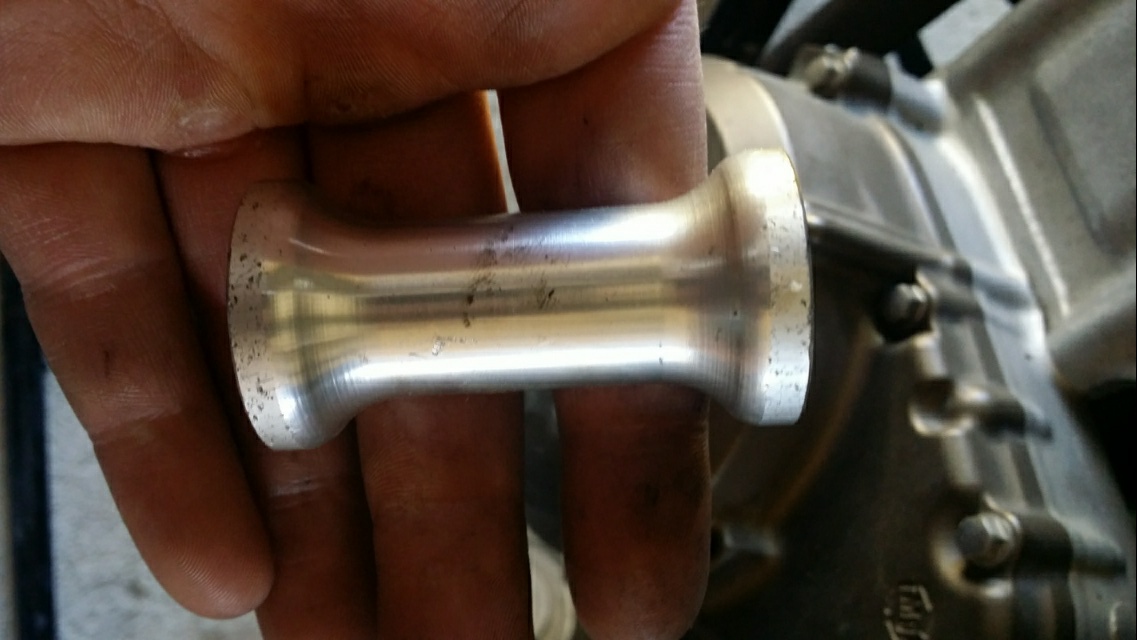

Ok next question. The thing in the photo. It's meant to go on the rear engine bolt above where the sprocket is. Does it serve a purpose? Because it's a caaaarnt to fit

shadowzx9 · Post by **shadowzx9** » Tue Sep 23, 2014 1:09 pm

Its a spacer, you dont want to be leaving that off
