CR500 Steel to Alloy frame conversion.

[Jonno]

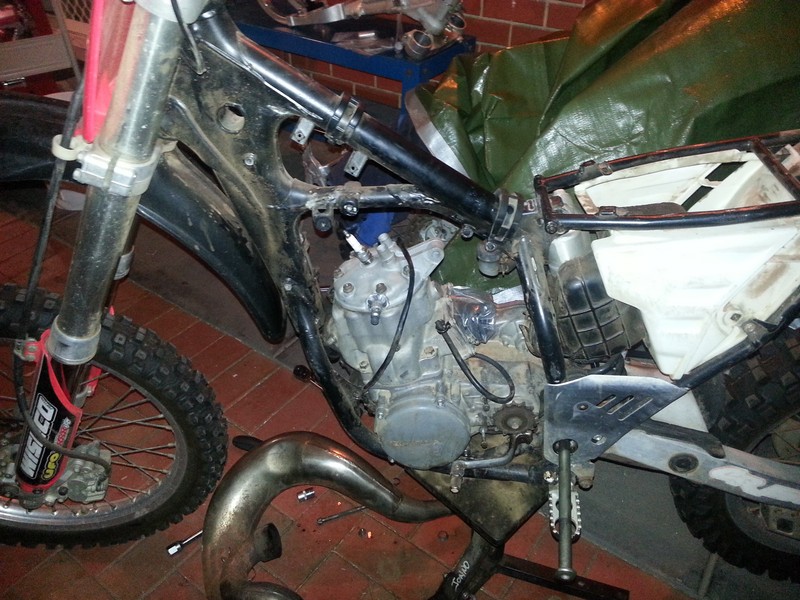

The donor, after a while it becomes easy to part it out for the conversion. It is plain to see the old slowly becoming very old as this progresses.


Cant wait to ride this once it is done to see the difference

[the kid]

Hurry up . I wanna see this happening ... cut the fucking thing

[Jonno]

Hurry up . I wanna see this happening ... cut the fucking thing

Impatience must be a part of getting old i guess However.....I do appreciate your encouragement mate

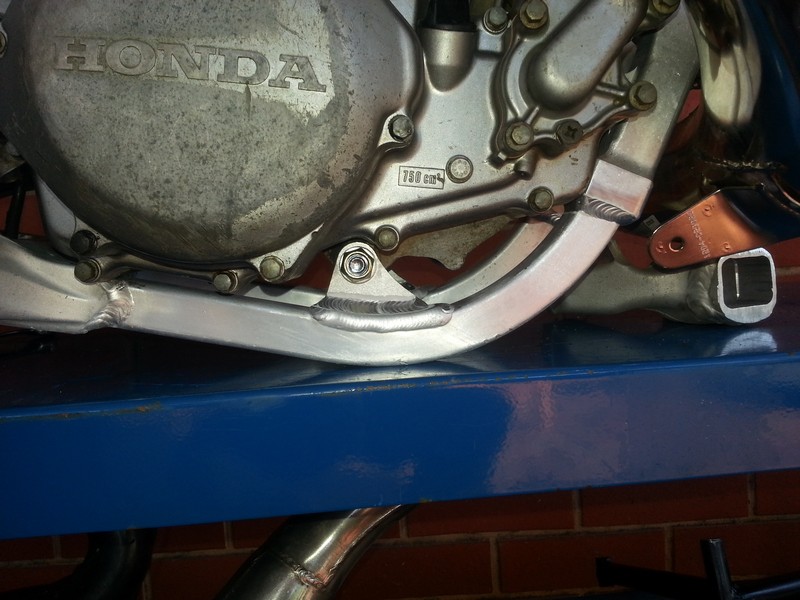

A mate did a fantastic job welding the frame, once it is all cleaned up it should look like factory.



Finally got the cometic head gasket so the new head is now torqued down.

New clutch basket and fibres are here, springs and steels all within spec.
Waiting on clutch basket holding tool so i can torque that down properly and do a quick soda blast to tidy the up the appearance of the barrel before fitting it into the frame.

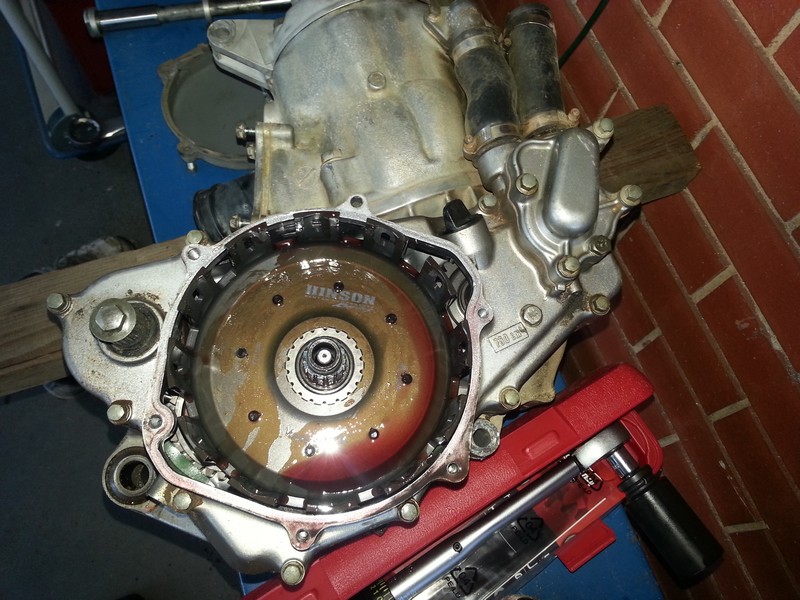

hinson basket and new fibres.jpg (155.48 KiB) Viewed 17485 times

next... Align the exhaust for welding hanger brackets, weld coil bracket, make an adapter plate to mount a CR250 airboot to the CRF airbox, modify radiator outlets then re-assemble the bike.

[aardvark]

Sloppy welds. Hope you didn't pay the rogue who did them too much!

[Jonno]

all in the family

[the kid]

Impatience must be a part of getting old i guess However.....I do appreciate your encouragement mate

Part of getting old is you don't have so much time left

Looks most excellent . Those welds are sweet !

[timmyrocks]

Nice welds look sweet

[Jonno]

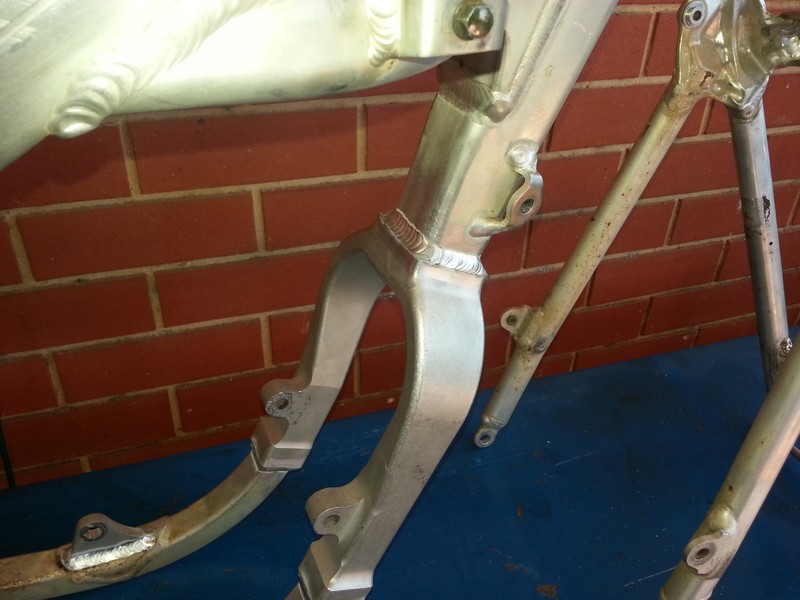

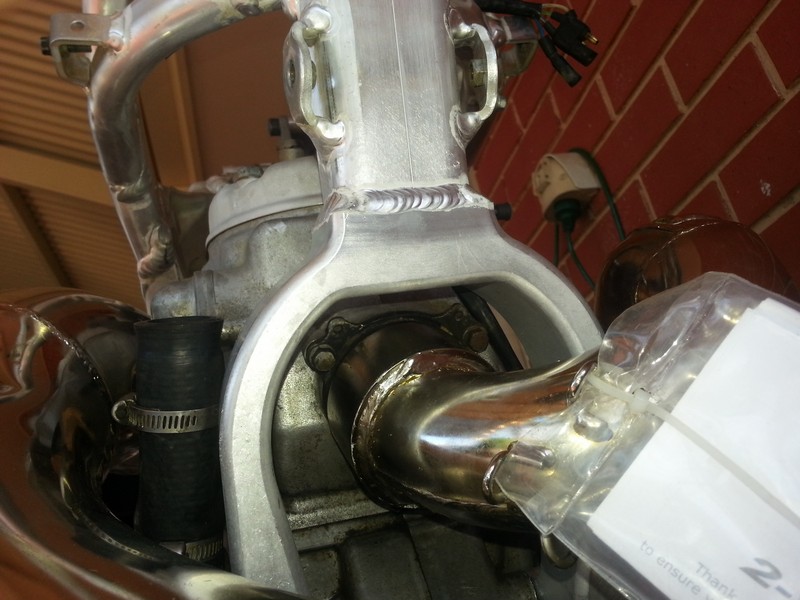

looks sweeter after an acid wash


(except for my grubby mits touching it)

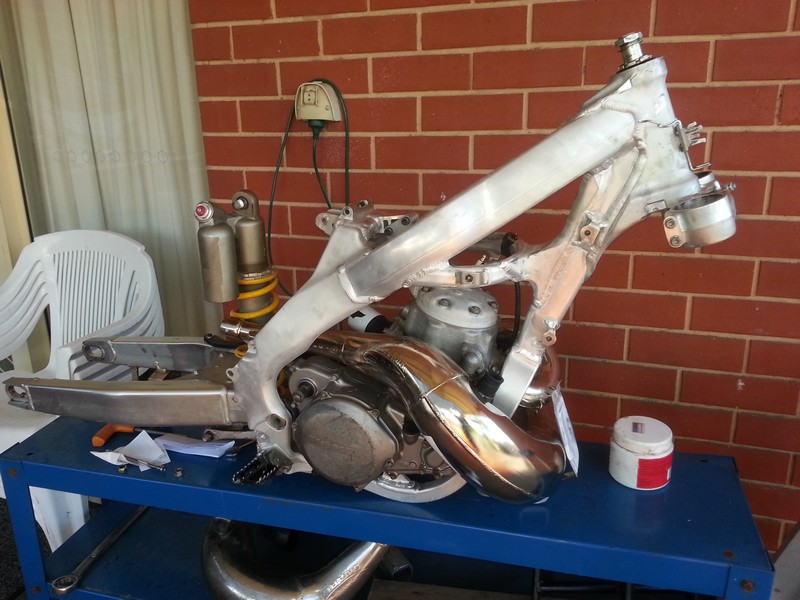

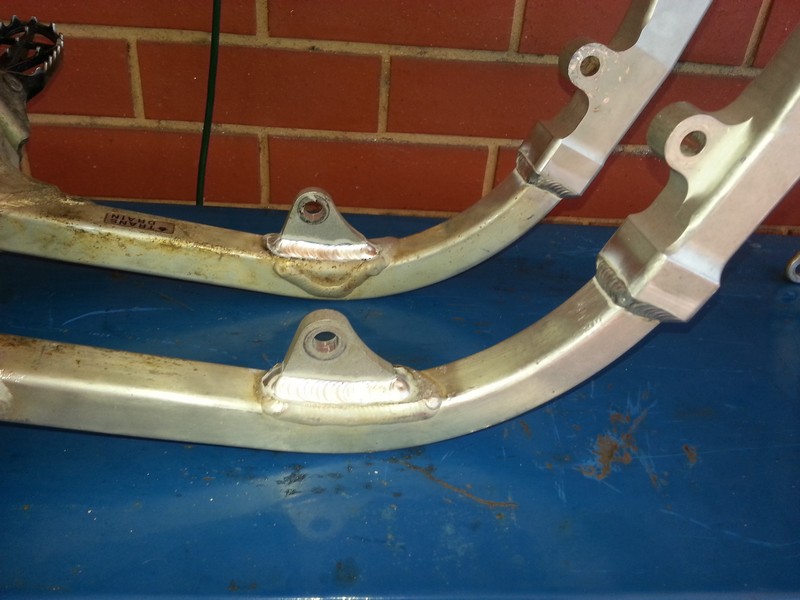

Before


After


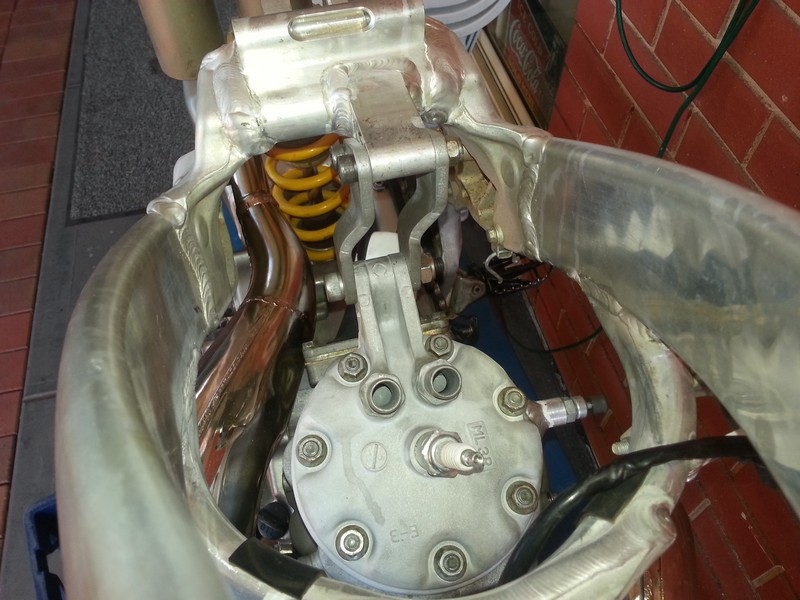

Heaps of space



I have learnt one lesson, order parts early otherwise ya waiting for the courier who only EVER shows up when ya quickly shoot down to the shops, or on the dunny and another thing on line tracking sux

[timmyrocks]

Noice!!!! Looks smick!

[the kid]

Nice
What is the wash you used ??

[Jonno]

Nice
What is the wash you used ??

Ali Brite (Septone)


Works great.

[the kid]

Thanks Jonno

[Gosling1]

....What is the wash you used ??.....

just like Willy the Groundskeeper......

washes with Ajax and scrubs with a Brillo pad !

Och Aye tha NOOO !!

[the kid]

....What is the wash you used ??.....

just like Willy the Groundskeeper......

washes with Ajax and scrubs with a Brillo pad !

Och Aye tha NOOO !!

But that acid wash really stings !! Good stuff Jonno

[Jonno]

Update:

Looks like my easter deadline may not be met, or did I say 1st week in April?

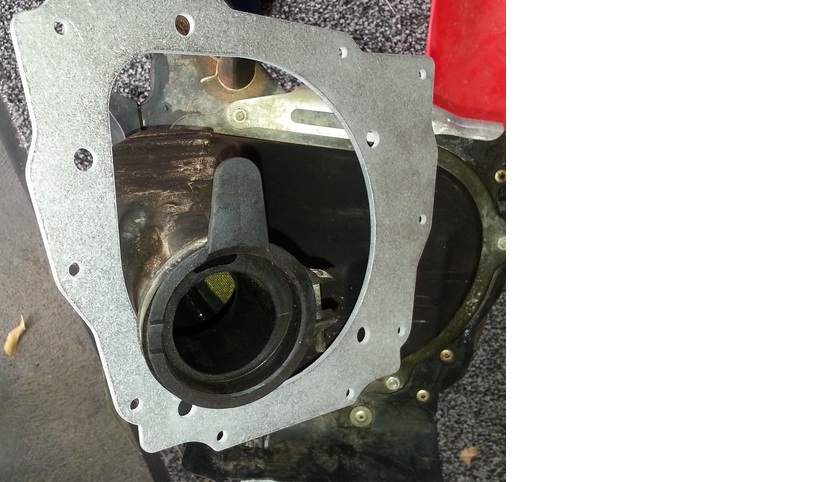

I am waiting on parts delivery again, particularly a CR250 air boot wich matches up perfectly with an adapter plate to the airbox/carb.

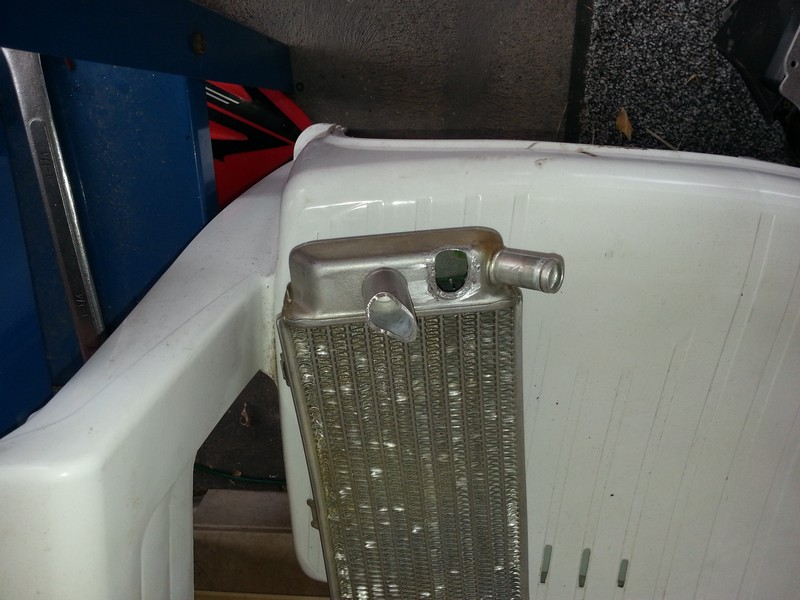

All the brackets for coil, exhaust etc and radiator mod done ready for welding


once the welding is done its pretty much putting it back together.

I need to heat n mold a tank to clear the spark plug and rad hoses, I trashed the first one but I did learn alot.



Been busy sourcing some bang for your buck performance for this engine, i just dont think it has enough mojo.







I found this, could do the job.

1000cc twin.jpg (50.11 KiB) Viewed 17418 times

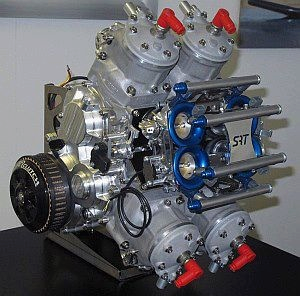

Yeah but thats not big enough, maybe this would be better.

inj V4.png (177.02 KiB) Viewed 17418 times

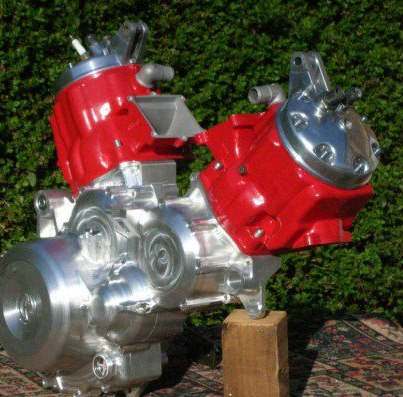

i cant remember if these are 500cc or 700cc mugen barrels.
