Radiator hose Issue 1995 zx6

Postby rep400 » Sat Jun 04, 2011 6:35 pm

Got a query for the brain trust of KSRC...

A hose has come off which runs from the radiator and im damned if i can find where it goes.It is a slighly pressurised line but only has spring clamps on each end

On the top RHS of the radiator there are 3 hoses

1. main hose - top of radiator to engine block
2 overflow line - to expansion tank
3.??? Directly below the over flow line there one more line.. the question is where does it go? From the back of the radiator to???? need to solve as it is pissing out coolant

cant find any cooling digrams on the net labeling where this hose goes either..

Cheers
:kuda:
rep400
Newbie

Posts: 13
Joined: Sat Jun 04, 2011 6:29 pm
Bike: ZX6R
State: New South Wales

Re: Radiator hose Issue 1995 zx6

Postby MrWasabi » Sat Jun 04, 2011 7:23 pm

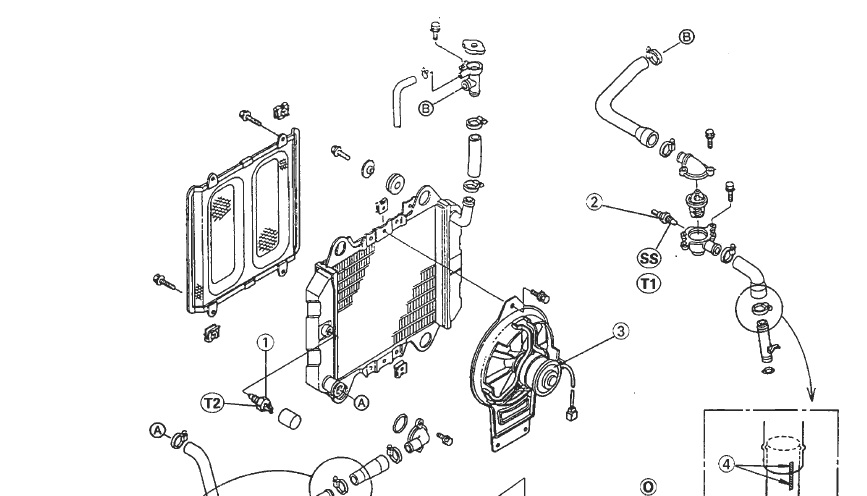

do you mean hose B? that i think goes to the thermostat
Attachments
Mistakes:
Learn from the mistakes of others. You won't live long enough to make all of them yourself.
