How to soften rubber?

For general Technical and Performance Discussions

How to soften rubber?

Postby aardvark » Thu Mar 23, 2006 8:33 pm

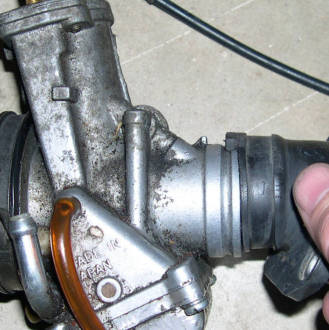

How can I get the rubber inlet on this manifold to fit over this outlet on the carby??

They are practically the same diameter. I tried soaking the rubber in acetone for 15 minutes, but that didn't work. Maybe soak it overnight?

Any other suggestions??
Attachments
User avatar
aardvark
Apprentice Post Whore :-)
Apprentice Post Whore :-)

Posts: 5766
Joined: Wed Apr 07, 2004 6:45 pm
Location: Adelaide, S.A.
Bike: Yamaha
State: South Australia

Postby Wattie » Thu Mar 23, 2006 8:39 pm

hot water!! sit it on hot water :)
Wattie #55
ZX10R "The Crim"
ZX10R "Gumby"
Proudly Supported by Allfixed Automotive 9634 1455
sam & srt, survived
RGM, left a message
User avatar
Wattie
VIP MEMBER
VIP MEMBER

Posts: 10041
Joined: Mon Oct 31, 2005 12:23 pm
Location: Bligh Park
Bike: ZX10R
State: New South Wales

Re: How to soften rubber?

Postby Ratmick » Thu Mar 23, 2006 8:45 pm

aardvark wrote:How can I get the rubber inlet on this manifold to fit over this outlet on the carby??

They are practically the same diameter. I tried soaking the rubber in acetone for 15 minutes, but that didn't work. Maybe soak it overnight?

Any other suggestions??

I'd be careful what you use on rubber as most solvents (like acetone) will make it brittle by removing the natural oils.

I have some blunt plastic tyre levers for my mountain bike that would work. Hook one edge over, hold it there and move around the perimeter with the other.

What about dishwashing detergent on the inside? If it's removable, what about coating it with said dishwashing detergent and pushing it up over an increasing-radius conical surface, like the outside of a coke/soft drink bottle neck, or a funnel. Leave it there to stretch a while and quickly transfer it to the carby.

None of these may work, but at least I answered :wink: .

Last minute edit> Try filling the bottle with really hot water.
User avatar
Ratmick
Team Hornet

Posts: 1931
Joined: Wed Apr 21, 2004 12:22 pm
Location: Macedon Ranges
Bike: Other Kawi
State: Victoria

Postby Strika » Thu Mar 23, 2006 8:51 pm

Cut out a slice of the side of an ice-cream container and wrap it around the outside of the Carb, making it taper down a little. Then slide the rubber boot over the ice cream container slice. Sort of like a shoe horn for your rubber boots!!!! It works I use this method when things like that get stuck. HTH :wink:
"I hate to advocate drugs, alcohol, violence or insanity to anyone, but they've always worked for me" Hunter S. Thompson.
There are really only two questions in life. 1.Which way do i go? 2.What is the lap record?
User avatar
Strika
VIP MEMBER
VIP MEMBER

Posts: 8373
Joined: Tue Feb 01, 2005 8:02 am
Location: Melbourne
Bike: Yamaha
State: Victoria

Postby Smitty » Thu Mar 23, 2006 9:03 pm

Jase....

rubber grease!
specially made NOT to affect the rubber (unlike everything else)
but makes it very slippery
wipe a smear on the edge and inside the rubber inlet
should just slide on

handy for caliper seals and anywhere you have to slide rubber
I keep a little tube in the toolbox
get it at repco or Bursons..$10 or so


hth

cheers
GOTTA LUV the 12R!!
User avatar
Smitty
VIP MEMBER
VIP MEMBER

Posts: 10910
Joined: Wed Apr 21, 2004 1:59 pm
Location: 3rd rock from the Sun
Bike: ZX12R
State: Victoria

Postby Neka79 » Thu Mar 23, 2006 10:12 pm

im a tight ass so id go with the heating it up option..but will soaking it in hot water cause it to dry, harden & crack??

dont wanna ruin it...
Neka
2006 Zeddy 1000
1996 VS series 2 S pak Ute
User avatar
Neka79
Extreme Post Whore :-)
Extreme Post Whore :-)

Posts: 13115
Joined: Fri Apr 23, 2004 12:20 am
Location: Adelaide......nah its cool..no really!!
Bike: Z900
State: South Australia

Postby ttc » Thu Mar 23, 2006 10:13 pm

I'd listen to Neka.. I reckon he'd be the expert on rubber :P
User avatar
ttc
Team Black

Posts: 2893
Joined: Fri Nov 19, 2004 2:59 pm
Location: Brisbane
Bike: Z1000
State: Queensland

Postby Rusty » Thu Mar 23, 2006 10:47 pm

Rubber grease works well, but vaseline works better. Hot water will soften it to an extent, but it's only the heat - may as well use a hairdrier.
Rusty
KSRC Regular
KSRC Regular

Posts: 690
Joined: Sat Nov 20, 2004 11:57 am
Location: Brisbane
Bike: ZX9R
State: Queensland

Postby Neka79 » Thu Mar 23, 2006 11:21 pm

tanyathecheeky wrote:I'd listen to Neka.. I reckon he'd be the expert on rubber :P

yea i kno all abt repairing it tanya..i kno abt destroying it too....uve seen the pics??

ur one of the ppl i thought woulda jumped up and down abt my antics...
Neka
2006 Zeddy 1000
1996 VS series 2 S pak Ute
User avatar
Neka79
Extreme Post Whore :-)
Extreme Post Whore :-)

Posts: 13115
Joined: Fri Apr 23, 2004 12:20 am
Location: Adelaide......nah its cool..no really!!
Bike: Z900
State: South Australia

Postby Nanna10r » Thu Mar 23, 2006 11:37 pm

Kev & I used an oxy and a piece of oversized pipe to stretch mine for the fzzzzr. Heat, place over pipe & bash with a piece of wood. It cut a new recess in the hardened rubber boots. Not pretty but it worked.
I'd try the rubber grease & ice cream tickler first though Jas.
Cheers Brett
"Nan & Pop Racing"
Poppy Hops on .... CBR150 (Superlite) CBR954 "Blade"
Nanna Naps on .... MoriWAKI NSR85 (Motolite) ZX10R "Crim"
We may ride like Old Can'ts, But Phuk we look DOOG !!!!!!
User avatar
Nanna10r
Team Ninja

Posts: 4291
Joined: Wed Jul 14, 2004 10:42 pm
Location: Brisbane Australia
Bike: ZX10R
State: Queensland

Postby Jonno » Thu Mar 23, 2006 11:52 pm

Rusty wrote:Rubber grease works well, but Vaseline works better. Hot water will soften it to an extent, but it's only the heat - may as well use a hairdrier.


Vase is a petroleum product and is never recommended for rubber, silicon rubber grease is the ultimate for rubber or rubber based products and "o"rings and seals and is used in the hydraulic world almost exclusively, maybe a bit of KY gel if ya got some.. :lol:

Anyway just enough to get it on as the excess will be squeezed to the inside and will be sucked / washed down to the cylinders but should not be an issue.

My experience and my opinion 8)
User avatar
Jonno
Mobile Chicane

Posts: 5613
Joined: Thu Dec 30, 2004 4:10 pm
Location: Brisbane
Bike: Other Kawi
State: Queensland

Postby varden » Fri Mar 24, 2006 12:31 am

compressed air, the way you'd use it to fit new handgrips to your bars.
Realise your most cherished desires by defending them from your casual wishes.-George S Clason
User avatar
varden
KSRC Regular
KSRC Regular

Posts: 669
Joined: Sun Jul 10, 2005 6:59 pm
Location: Brisbane, Qld
Bike: ZX10R
State: Queensland

Postby mrmina » Fri Mar 24, 2006 8:46 am

heat gun it
[url]www.rmsmg.com.au
mrmina
Apprentice Post Whore :-)
Apprentice Post Whore :-)

Posts: 7039
Joined: Wed Apr 21, 2004 8:11 pm
Location: Sydenham, Victoria

Postby Gosling1 » Fri Mar 24, 2006 4:54 pm

*someone* is trying to fit a bigger carby to a small-ish manifold..... :roll: thats why the inlet/outlet is the same size heh matey ??

Rubber grease is the go, but the whole arrangement will only be temporary anyway, as the bigger carby will quickly stretch the rubber manifold and it will split/crack/suck in heaps of air and KRUNCHA.......piston seizure.....

you would be better off sourcing a larger inlet manifold, that fits over the carbie outlet *properly*, then modify the manifold to suit the barrel.....re-drill the mounting holes, use an adapter plate, whatever......it will be cheaper in the long run than replacing pistons.......

8)
".....shut the gate on this one Maxie......it's the ducks guts !!............."
User avatar
Gosling1
Team Donut
Team Donut

Posts: 13823
Joined: Mon Jun 20, 2005 9:30 pm
Location: Anarchy Road
Bike: Z900
State: ACT

Postby Wattie » Fri Mar 24, 2006 4:59 pm

Gosling1 wrote:*someone* is trying to fit a bigger carby to a small-ish manifold..... :roll: thats why the inlet/outlet is the same size heh matey ??

Rubber grease is the go, but the whole arrangement will only be temporary anyway, as the bigger carby will quickly stretch the rubber manifold and it will split/crack/suck in heaps of air and KRUNCHA.......piston seizure.....

you would be better off sourcing a larger inlet manifold, that fits over the carbie outlet *properly*, then modify the manifold to suit the barrel.....re-drill the mounting holes, use an adapter plate, whatever......it will be cheaper in the long run than replacing pistons.......

8)


Jesus Has spoken... :lol: :lol:
detective Gos is on the case
i wont dispute this as i dont know what size they normally are... :oops:
Wattie #55
ZX10R "The Crim"
ZX10R "Gumby"
Proudly Supported by Allfixed Automotive 9634 1455
sam & srt, survived
RGM, left a message
User avatar
Wattie
VIP MEMBER
VIP MEMBER

Posts: 10041
Joined: Mon Oct 31, 2005 12:23 pm
Location: Bligh Park
Bike: ZX10R
State: New South Wales
