Calling Kawasaki esoteric knowledge heads - can question.

[Robsalvv]

Folks,

I'm looking for a kwaka OEM muffler model listing, that describes their can's by their KHI numbers and what bike model they're meant to fit.

I've got an '029R with a scratched up can. I was given a 2nd hand OEM can which the guy thought came from a late model 9R - but he's not sure... if I had a list, I could cross reference the can's KHI number as it is different from the one on my own bike.

With a few mods I can make the other can fit... still, I'd like to know what bike it came from.

Thanks in advance folks.

Cheers

Rob

[Smitty]

hi Rob
(and welcome to another Netrider )

mate
the best place on the 'net to do what you are after is....
http://www.buykawasaki.com
look at each years 9R
and look at the zorst piccies ..you have the part numbers there
to compare against the actual one you have

I know its a bit longwinded but will give you what you are after
(its either that or annoy a dealer here in Melb)


cheers

[ty]

Rob, I'm pretty sure they're the same.
Dave#3's '02 and my '99 are compatible. He has a stock lying around that I'm sure he'll check out for you.
PM him as he's likely working.
ty

[Robsalvv]

Taa guys.

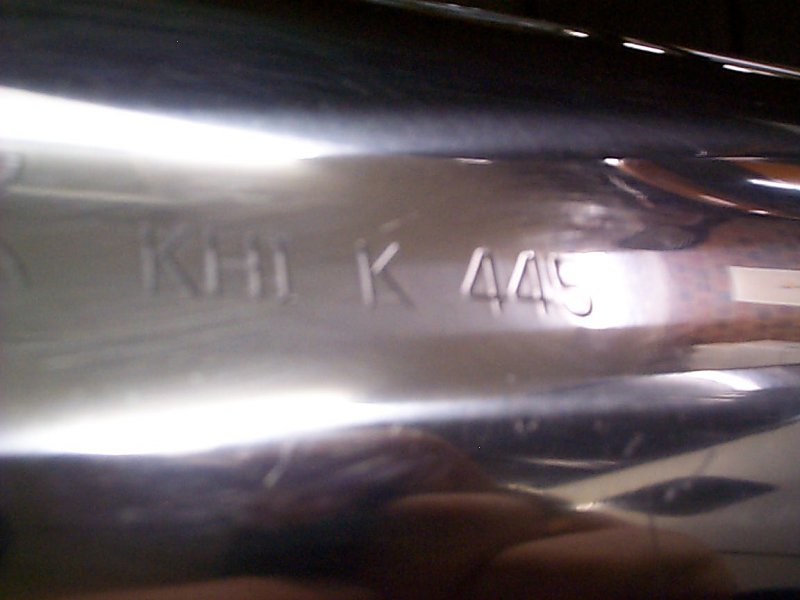

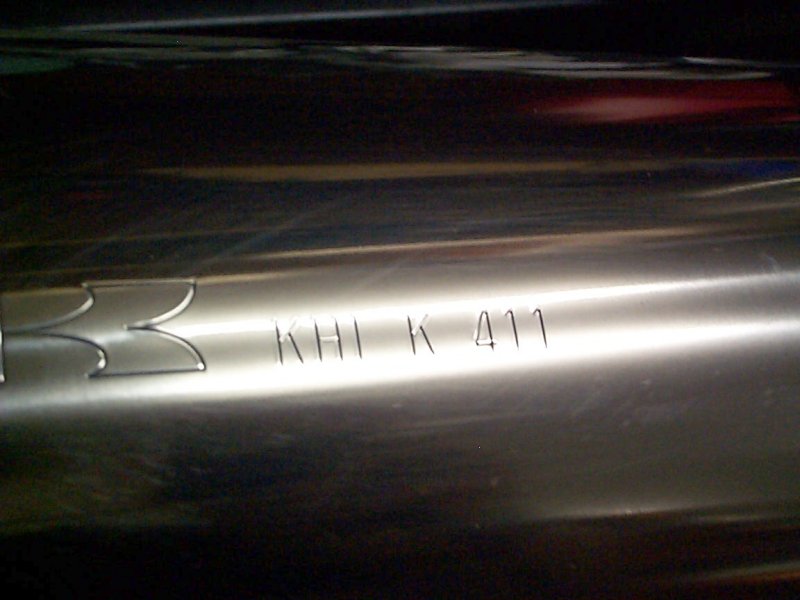

Just for the record, I have a KHI 445 on my bike. The can given to me is a KHI 411.

The 411 fits the bolt on flange no problems, but has a different pillion peg attachment bracket that will require some fair grinding work to make fit.

Anyway, shall follow up those leads!

Ciao for now.

Cheers

[Robsalvv]

Hey Smitty,

the buykwaka site has the official catalog part numbers, not the individual component model number, so it hasn't shed much light on my query.

So I'm still on the hunt.

Cheers and thanks again.

Rob

p.s. I know there's more exciting things to rap on about, but I might raise another post asking for kwaka riders to post their OEM can KHI numbers - maybe we can build a list the good old fashioned way!

[Smitty]

Hey Smitty,

the buykwaka site has the official catalog part numbers, not the individual component model number, so it hasn't shed much light on my query.
So I'm still on the hunt.

Cheers and thanks again.

Rob

p.s. I know there's more exciting things to rap on about, but I might raise another post asking for kwaka riders to post their OEM can KHI numbers - maybe we can build a list the good old fashioned way!

thanks Rob

its interesting that the parts listing does not equal the part number
on the part....

fyi

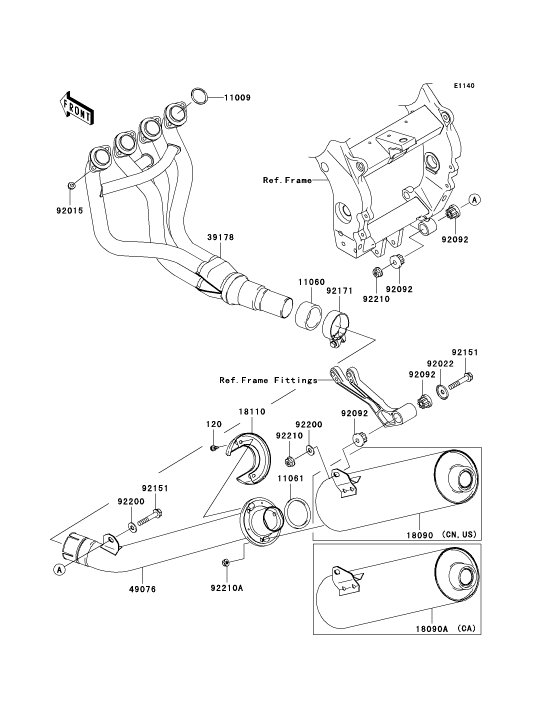

the buykawasaki site lists the same part number for ZX900E and ZX900F
models cans.....see pic
so what does the KHI number on the can mean..?

cheers

[I-K]

Between 1998 and 2003, the muffler on the ZX9 went externally unchanged (the '02 model scored a cat). If this muffler you've got doesn't have a polished finish and "TITANIUM" etched into the side just like your original muffler, it's off something else.

Can you describe it? What's it look like?

[Robsalvv]

Smitty, took the question right out of my mouth.

My guess is the KHI part stands for "Kwaka heavy industries".

I remember seeing the KHI thing on my GPX cans as well. I guess all OEM cans are branded in a similar way.

I'll get a digipic to demo a bit clearer.

IK, the 2nd hand can looks identical to mine in all ways except the mounting bracket to the subframe and the KHI number. It even bolts up fine to the flange on the link pipe so it must be part of the Ninja sports bike range... I'd just like to know which bike though.

Cheers.

Rob

[Robsalvv]

I can't load the pix. I get an "Could not access ftp directory: '/thumbs'. Please check your FTP Settings" error.

WTFDTM?

[Smitty]

Smitty, took the question right out of my mouth.

My guess is the KHI part stands for "Kwaka heavy industries".

I remember seeing the KHI thing on my GPX cans as well. I guess all OEM cans are branded in a similar way.

I'll get a digipic to demo a bit clearer.

IK, the 2nd hand can looks identical to mine in all ways except the mounting bracket to the subframe and the KHI number. It even bolts up fine to the flange on the link pipe so it must be part of the Ninja sports bike range... I'd just like to know which bike though.

Cheers.

Rob

Rob
yeah KHI = Kwaka H Industries

and pics?
you don't FTP them to here
the post system allows you/does that for you
when posting..look at the Attachment posting panel
at the bottom, click on 'Add an attachment'
select source (on ya PC via browse)
then select 'Add attachment'..pic is uploaded
and then submit post
Pics have upload rules
(size type etc - see here - http://www.ksrc-au.com/phpBB2/attach_rules.php?f=1)

cheers

[Robsalvv]

That's what I did Smitty... could have something to do with this being a proxy server connection... just tried it again... same thing.

Rob

[Smitty]

That's what I did Smitty... could have something to do with this being a proxy server connection... just tried it again... same thing.

Rob

hmmm
maybe one for our Admin..Daniel
oh
just had a thought-
mate
how about re-starting the browser after clearing the cache
and trying again ?

cheers

[Smitty]

Smitty, took the question right out of my mouth.

My guess is the KHI part stands for "Kwaka heavy industries".

I remember seeing the KHI thing on my GPX cans as well. I guess all OEM cans are branded in a similar way.

I'll get a digipic to demo a bit clearer...snip

Rob sent me the pics..as he is having a prob posting them here
so below are the pics

anyone got some more info on these?

cheers

[Nanna10r]

Welcome Rob. Mate didnt have time tonight i'll have a look over the weekend for ya though.
Cheers Brett

[Smitty]

Smitty went for a drive this morning and a walk thru a bike shop
...Kwaka of course

and to add to this topic, here we go-

ZR7 KHI389
ER5 KHI359
Z750 KHI460
ZX12r KHI400
ZX6r(2000?) KHI410
ZX9r (2001) KHI411
and
ZX6r(2003) KHI452


cheers
