by **gazza2008au** » Sat Sep 17, 2011 1:39 pm

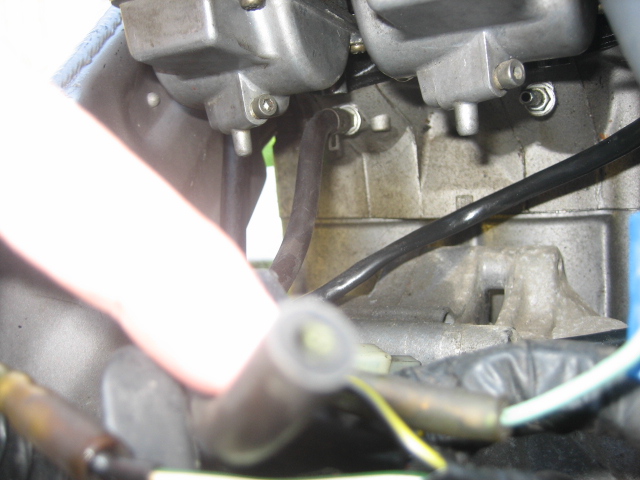

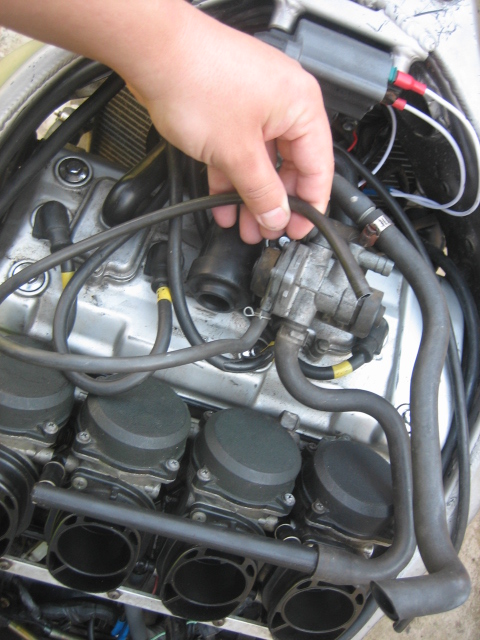

i was going to take the bike to the shop to have this pollution thingo hooked up for around $220 labour i thought i would ask here before i drop the bike into the shop on monday does anyone know where these hoses go exactly and where do these hoses/nozels on the intake manifold go?

by **robracer** » Sat Sep 17, 2011 2:24 pm

Have you got a manual? dont pay to have it done :shock:

by **gazza2008au** » Sat Sep 17, 2011 3:31 pm

yeah mate i have the clymer manual all it says its to label each hose when pulling the bike down it doesnt say what goes where

by **robracer** » Sat Sep 17, 2011 3:49 pm

Bugga you need a copy of the genuine workshop one, hopefully someone can scan a copy & post up here?

by **gazza2008au** » Sat Sep 17, 2011 3:57 pm

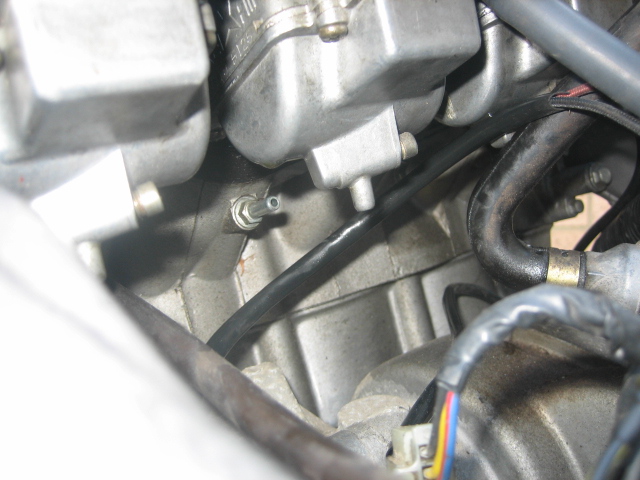

do u know what or where the hoses go that are below the carbies?

by **robracer** » Sat Sep 17, 2011 4:07 pm

Have a look here:
http://www.ronayers.com/Fiche/TypeID/26 ... Ninja_ZX-7

by **born green** » Sat Sep 17, 2011 5:09 pm

What yr and model?

by **gazza2008au** » Sun Sep 18, 2011 6:32 pm

rob thanks ive looked on there there is just no where for one of the hoses from the pollution contraption im taking the bike to the shop tomorrow

bg its a zx7r 94

by **gazza2008au** » Mon Sep 19, 2011 3:53 pm

i was about to take the motor bike into the shop when my cousin came over he said to drop by a motorcycle wreckers he knew one of the mechanics the bloke was nice enough to take a look he said all the small hoses goto the 3 vaccum ports under the carbies and he showed me where the other hoses goes i will work on it tomorrow and let u all know how i get along also the last owner snapped off the mount that holds both throttle cables this is completely snapped off off of the 4th carbie so i will need to get it welded back on im assuming i need to strip the carbie down for welding?

by **born green** » Mon Sep 19, 2011 4:15 pm

Mines a 96 model, prob the same, see how u go, i wouldnt be going anyehere near it with a welder, if u got the tank and air box off, easy job getting carbies off.
Suss out the wreckers, maybe able to find a old buggerd set cheap, and rape it for parts u need? not a hard job stripping them, just takes a while!!! doesnt one of those hoses go into the front of the air box? couldnt quiet see enough in the photo

by **gazza2008au** » Tue Sep 20, 2011 5:49 pm

ok guys i got her back together using a bottle as a fuel tank she runs beautiful very throttle touch it sounds ******* wicked! with the full carbon exhaust but now i have a problem there are 3 outlets on the ON/OFF tap one goes to the tank than i have one hose on the bike that goes to the fuel pump where does the 3rd one go?

and its blowing a small amount of smoke could it be running lean or rich? or could it just be the engine was laying on its side for a while on its trip from melb-sydney a couple of weeks ago?

by **timmyrocks** » Tue Sep 20, 2011 7:55 pm

Usually a vaccum hose goes to the fuel tap, and if bike was laying on it side then I wouldn't be to worried if it blowing smoke, but it should clear up after a good run

by **gazza2008au** » Tue Sep 20, 2011 8:57 pm

ah ok i seen the small hose coming from the fuel tap i thought it might not have been used i will hook it up to the vaccum tomorrow thanks

by **gazza2008au** » Wed Sep 21, 2011 5:31 pm

ok guys new bunch of hoses and now im stuck! if i hook the last manifold vaccum hose to one of the two ports on the fuel tank it will either be sucking fuel or sucking air and ive been told the vaccum hoses should suck air or it will seize the engine

by **ZXRJed** » Fri Sep 23, 2011 1:36 pm

gazza2008au wrote:ok guys new bunch of hoses and now im stuck! if i hook the last manifold vaccum hose to one of the two ports on the fuel tank it will either be sucking fuel or sucking air and ive been told the vaccum hoses should suck air or it will seize the engine

How much fuel is in your tank?

I have a 93 model - the 2 hoses side by side on the tap go to the 2 outlets at the bottom of the tank - 1 for the "On" position and 1 for "Reserve". The reason one doesn't leak is because you probably don't have enough fuel in the tank and it's only your reserve hose that's leaking.

Did you get your vacuum hose under the air box sorted?

Pretty sure the manifold vacuum hose goes into the bottom of the air box. I will check over the weekend for you. I should bloody know I've had the thing off that many times
